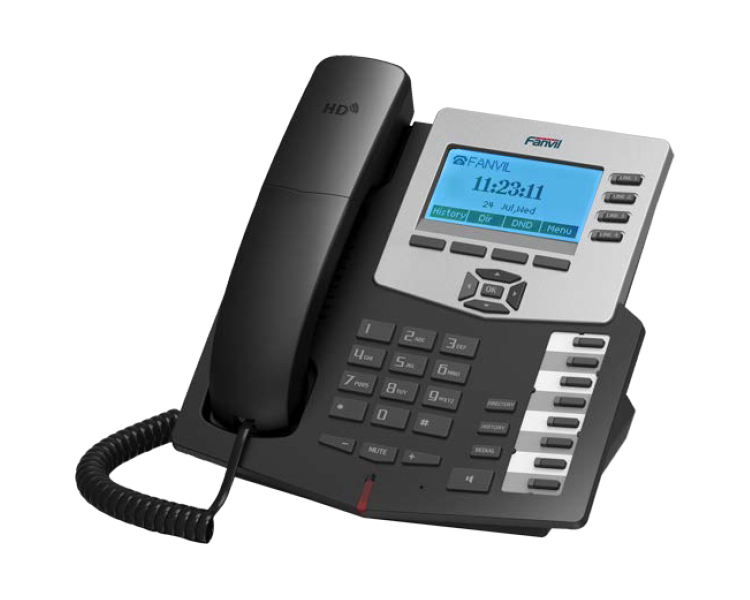

Fanvil C62 IP Phone

Please Note: The Fanvil C62 IP Phone has been discontinued. For an alternative, we recommend the Fanvil X5 IP Phone .

Stylish, practical and economical, the Fanvil C62 IP Phone is an advanced IP phone. It is equipped with the latest Broadcom’s high-definition voice chipset, with high-quality handset and the speaker that provides clear and consistent voice quality in rich detail. It supports 6 SIP accounts, 8 DSS Keys, 1 IAX2, and PoE on board.

Fanvil C62 Key Features

  • vxworks OS
  • Supports SIP 2.0 (RFC3261) and correlative RFCs
  • SIP supports 6 SIP servers, and backup SIP proxy servers.
  • Supports SIP UDP/TCP/TLS
  • Support IAX2,iax2 line call
  • SIP support SIP domain, SIPauthentication (none, basic, MD5),DNS name of server, Peer to Peer/ IP Call
  • Large dot matrix LCD display and soft keys make user easier to use
  • Soft keys programmable
  • Line keys programmable (each key have led indication)
  • Function keys programmable (each key have dual-color led indication)
  • Expansion board (up to connect 5 expansion boards, each board have 30 function keys, each key have 2-color led indication)
  • Supports RJ-9 headset
  • Multi languages displayed

The C Series IP Phones are a Business Grade IP handset with a huge range of features and flexibility. The C Series was designed and built for Enterprise Businesses with its modern design and ergonomic feel.

Fanvil Technology Co., Ltd. is a professional developer and manufacturer of VoIP products. Fanvil provides VoIP communication devices solutions for small and medium sized businesses, as well as large mission-critical enterprise environments.

Fanvil C62 - Technical Specifications

Display

  • Display Resolution: 128x64 with Backlight

Audio Features

  • HD voice: HD handset
  • Codec: G.711A/u, G.7231 high/low, G.729AB, G.722, G.726-32
  • DTMF: In-band, RFC 2833 and SIP INFO
  • Full duplex hands- free speaker phone with acoustic echo cancellation
  • Voice Activity Detection (VAD)
  • Comfort Noise Generation (CNG)
  • Background noise suppression
  • Adaptive jitter buffers
  • Packet loss concealment
  • SRTP
  • Different country tones
  • Mute

Advanced Features

  • Call forwarding (busy/ no answer/ always)
  • Call transfer ( unattended/ attended/ semi-attended )
  • Call holding
  • Call waiting
  • 3 way call conference
  • Capable of 10 way conversation
  • BLF list
  • Join call
  • Call pickup /Call back /Call Completion
  • Call park
  • Last Number Redial / Auto Redial
  • Hot desking
  • Predial
  • SIP messaging , MWI
  • Flexible dial plan
  • Barring function for outgoing calls
  • Do not disturb
  • Auto answer
  • Caller ID display
  • CLIR(rejects anonymous calls)
  • CLIP(to make an anonymous call)
  • Dial without registration
  • Call logs with missed calls/ incoming calls/ outgoing calls. Each support 300 records
  • Phonebook 500 records
  • Speed Dial (abbreviated dialling) • Hotline/Warm-line
  • Call rejection
  • Black List/ White List
  • Intercom/Intercom barge
  • Password dial, DTMF hidden
  • Action URL/ active URI
  • Voice codec setting for each SIP line
  • Multicast
  • LDAP, XML phonebook
  • Web dial
  • Keypad lock, Emergency call

Network/ Security Features

  • WAN / LAN:10/100M Ethernet ports,
  • Bridge mode and route
  • PPPoE for xDSL
  • 802.3af POE
  • VLAN(Voice VLAN/Data VLAN)
  • 802.1X
  • NAT (NAPT)
  • NAT transverse :Support STUN client
  • DHCP client on WAN/ DHCP server on LAN
  • Main DNS and secondary DNS server
  • DNS Relay
  • SNTP Client
  • Firewall and DMZ
  • Web management access restricted
  • VPN(L2TP/Open VPN)
  • ping, tracert, telnet

Maintenance & Management

  • WEB, telnet and LCD menu management
  • Management with different account right
  • Recover firmware and factoryreset through POST mode
  • Upgrade firmware via HTTP, HTTPS, FTP, TFTP
  • DHCP option66 and custom option for auto provisioning
  • Auto Provisioning to upgrade configuration file with AES(256) encryption
  • TR-069 and Syslog

Physical features

  • Adapter Input: AC 100-240V
  • Adapter Output: DC 5V/1A
  • WAN Port -10/100 BASE-T RJ-45 for LAN
  • LAN Port-10/100 BASE-T RJ-45 for PC
  • Headset: RJ9
  • Expansion: RJ45
  • Power consumption: IDLE: 2.5W Active: 2.8W
  • Display Resolution: 128x64 pixels
  • Operation Temperature: 0?40?
  • Relative Humidity: 10?65%
  • Main Chipset: Broadcom
  • SDRAM: 16MB
  • FLASH: 4MB
  • Weight - Phone:0.99kg
  • Dimension: 235x225x97mm
