Redfone VGate-Dual 60 Channel License

The Redfone VGate is a VMWare compatible turn-key software appliance. When combined with foneBRIDGE2 hardware it quickly and easily provides a complete T1/E1 to SIP gateway with advanced SIP features including SIP load balancing and auto fail-over to provide always on capabilities.

Leveraging the benefits of virtualization, Redfone customers can now:

• Consolidate voice and other platforms onto a single server
• Reduce hardware and operational costs, accelerate provisioning, cen
• tralize management, and increase overall system availability and surviv
• ability.

Target Applications

• Standalone T1/E1 to SIP Gateway trunking with Remote SIP PBX
• T1/E1 to SIP Gateway trunking to local SIP PBX internal to VMWare or on separate hardware
• T1/E1 to SIP Load Balancing to multiple SIP PBXs or SIP applications

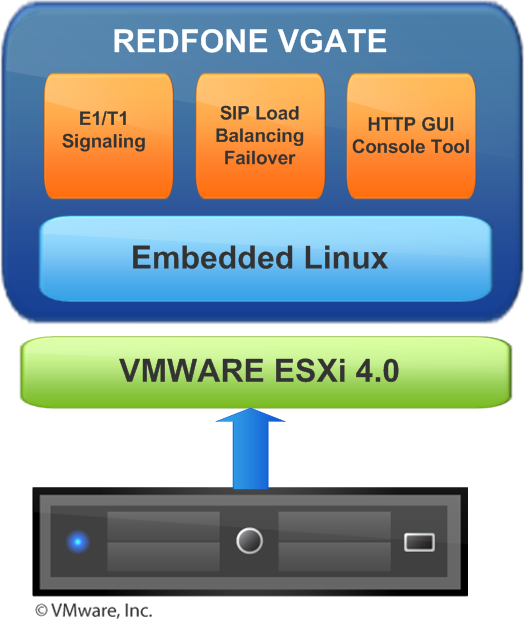

VGate Block Diagram

Compatibility

Asterisk, Elastix, Trixbox, FreeSwitch, 3CX, Any SIP compliant PBX or application

Key Features

• Universal and Simplified T1/E1 Support
• Robust and comprehensive ISDN/PRI signaling
• capabilities. Worldwide PSTN Connectivity.
• QSIG connectivity for PBX to PBX interconnect.

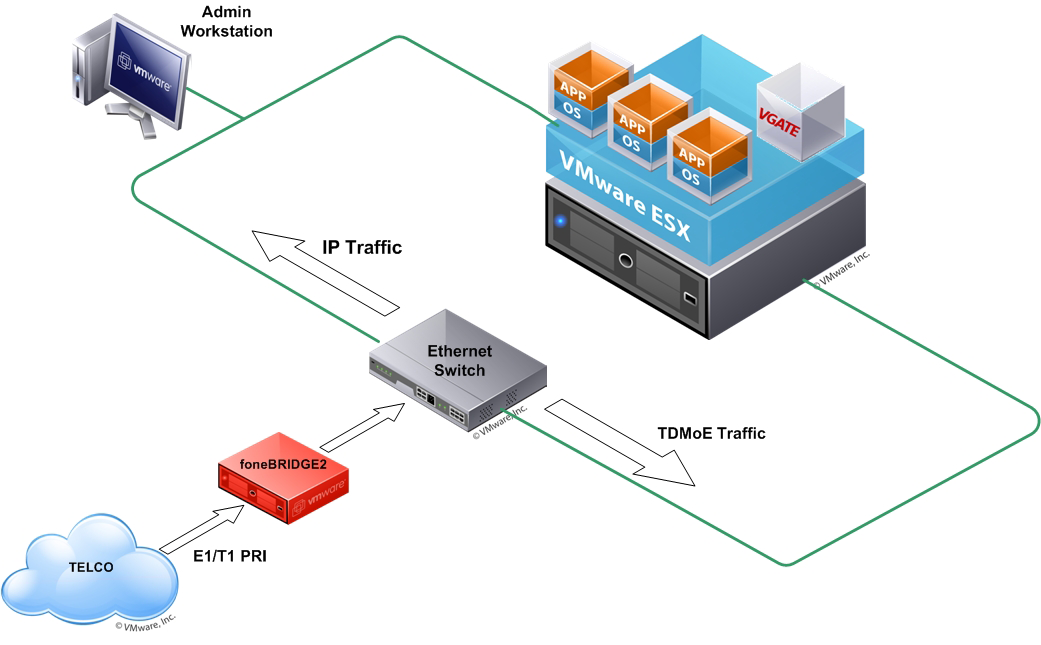

VGate Logical Diagram

Standards based SIP Compatibility

Interoperability with any standards based SIP application or PBX.

Standards

VMWARE

VMWare ESXi 4.0 compatible

T1/E1 ISDN

• PRI Switch Compatibility– EuroISDN, AT&T 4ESS,
• DMS 100, Lucent 5E, NI1/NI2; Network or CPE
• Standards-based and conforms to the IETF, ITU-T,

ANSI and ECMA standards ISDN Worldwide ISDN switch variants ETSI EuroISDN TBR4 PRI Japan INSnet1500

SIP Protocol
RFC 4497 compliant Compliant with RFC 3261 and 3264

Specifications
Small embedded and secure Linux-2.6  Browser based GUI for admin

Requirements
VMWare ESXi 4.0 Server VMWare compatible server hardware VMWare tools installed vSpere client for remote admin or similar 2 Ethernet NICs minimum.

Licensing
Single, dual or quad T1/E1 license packs Field upgradeable licensing 1 Year warranty including upgrades and fixes
