Sangoma SS7 Gateway Scenarios

The Sangoma NetBorder SS7 Gateway is a cost effective and robust solution delivered in a 1U or 2U appliance

  • What is a SS7 Gateway
  • Typical VoIP Service Provider Network
  • Low Cost Long Distance/Pre-paid Calling
  • Combine with OST for MVAS development
  • Caller Ring Back Tone Server (CRBT)
Sangoma Media Gateways

What is SS7?

Signaling System number 7 (SS7) is a legacy PSTN protocol that is in use in carrier networks Some markets use SS7 to connect to large enterprises (such as a call center) It is a very vast protocol set It is the base for the PTSN. All GSM networks run on SS7. Network Nodes are identified with Point Codes. SS7 protocol has several layers MTP 1, 2, 3 for routing messages ISUP for call set-up TCAP for transactions (800, CNAM, LNP)

SS7 VoIP Gateway Components

As networks are moving to VoIP, there is a need for Media Gateways to convert PSTN Media and Protocols to IP based Media and Protocols An SS7 Media Gateway needs Telecom Interface (typically T1/E1) IP Network Interface (typically Ethernet) Protocol interpreters (or stacks) – SS7 ISUP / SIP Lots of software to transform and translate how things are done on each side of the gateway.


Sangomsa SS7 Gateways are an ideal Solution for the following Markets
  • Service Providers
  • IVR and Contact Centers
  • Open Source Telephony
  • Mobile Value Added Services

Uses of Sangoma Netborder SS7 Gateways

Typical VoIP Service Provider Network

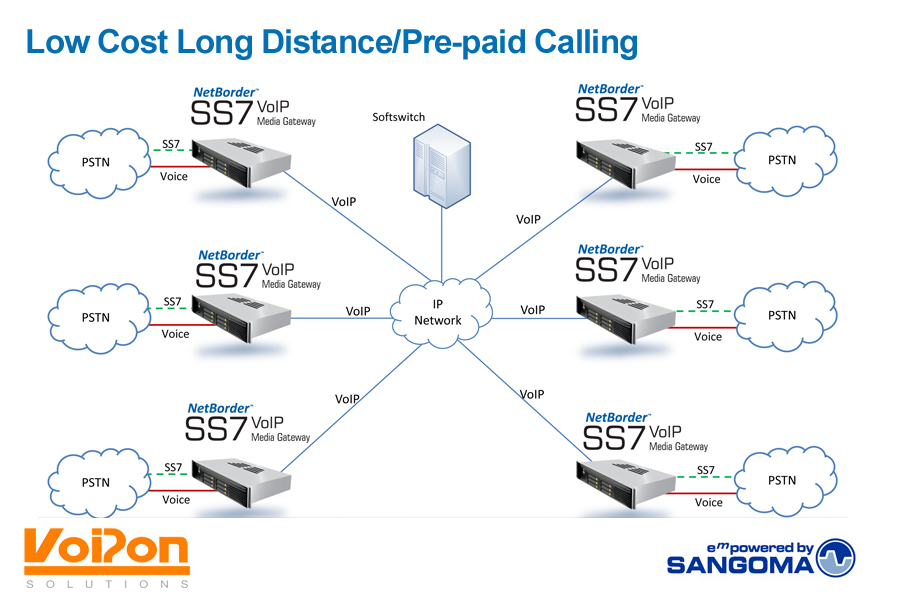

Low Cost Long Distance/Pre-paid Calling

Combine with OST for MVAS development

Caller Ring Back Tone Server (CRBT)

You can purchase the Sangoma Vega Session Border Controllers below:

  • Sangoma SS7 Appliance Up to 4 E1/T1, ISUP to SIP, codec support, 4 signalling links, up to 12 point codes
  • Sangoma SS7 Appliance Up to 8 E1/T1, ISUP to SIP, codec support, 8 signalling links, up to 12 point codes
  • Sangoma SS7 Appliance Up to 16 E1/T1, ISUP to SIP, codec support, 16 signalling links, up to 12 point codes
  • Sangoma SS7 Appliance Up to 32 E1/T1, ISUP to SIP, codec support, 32 signalling links, up to 12 point codes
