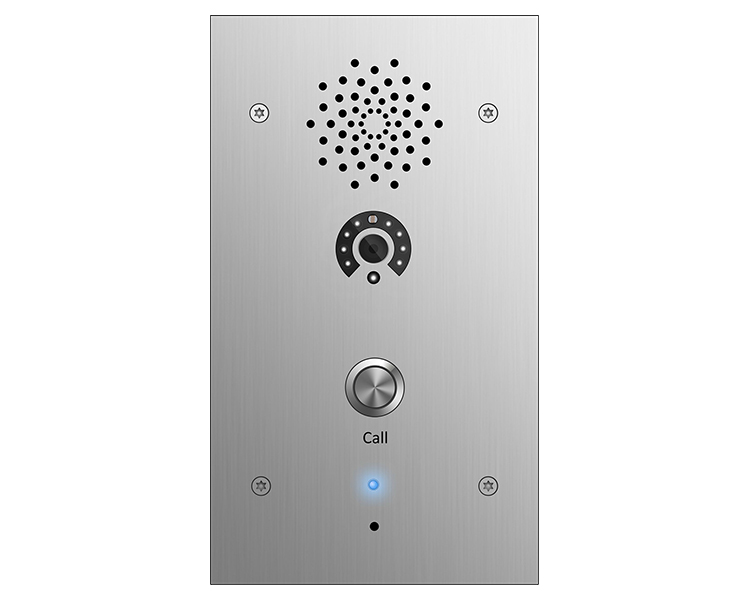

Akuvox E21V Door Entry Panel

The Akuvox E21V is an outdoor-rated, SIP-compliant hands-free Voice over IP (VoIP) Emergency Stations for use in locations such as: parking facilities, college campuses, medical centers, and industrial parks.

Akuvox E21V Key Features

  • One panic button input for emergency intercom;
  • Two-way audio communication over IP networks with Echo Cancel feature
  • PoE (IEEE802.3af, Power-over-Ethernet);
  • Camera Resolution of 3M pixels;(E21V only)
  • MPEG-4/MJPEG compression; (E21V only)
  • Complies with SIP standard for easy integration in every SIP capable PBXes: CUCM, Avaya, Asterisk, Digium, etc;
Akuvox E21V - Technical Specifications

Physical & Power

  • Body material: 316 grade stainless steel  Camera: 3M pixels (E21V only)  Button: 1 panic button; 1 reset button (on board)  Microphone: 1 integrated microphone, IP67
  • Speaker: 2W, IP66
  • Input Relay: 2 input relays for alarm
  • Output Relay: 2 output relays for door opener  Call Indication: 1 RGB LED (colors: red, green, blue)  12V DC input  Power consumption: less than 12W
  • Water-proof & Dust-proof: IP65
  • Installation: Flush-mounted
  • Fit in Clipsal 164/4 back box
  • Dimension: PCB - 74x140mm
  • With flush mount kit - 210x120x61mm

SIP Endpoint

  • SIP v1(RFC2543), SIP v2(RFC3261)
  • Audio codecs: G.711a, G.711μ, G.722, G.729
  • Video codecs: MPEG-4/MJEG (E21V only)
  • Speech Quality: 7kHz Audio
  • Echo Cancellation
  • Voice Activation Detection
  • Comfort Noise Generator

Video (E21V only)

  • Resolution: up to 1080p
  • Compatible to 3rd-Party-Video components, e.g. NVRs

Web support multi-language

  • Auto-answer
  • Volume control
  • Direct IP call without SIP proxy
  • Auto-Provision

Networking

  • 2x10/100 Mbps Ethernet ports  Security: Password Protection, IP address filtering,
  • SIP over TLS, HTTPS encryption, user access log
  • Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Certification

  • Complied with CE & FCC

Target Groups

  • Education: universities, campuses, schools
  • Logistics & Transportation: airports, parking lots
  • Healthcare: hospitals, laboratories
  • Industries: Manufacturing & Production, Energy,
  • Metal & Mining, Chemicals
