Please Note: This product is no longer available. To find an alternative, please see our IP Video Conferencing solutions.

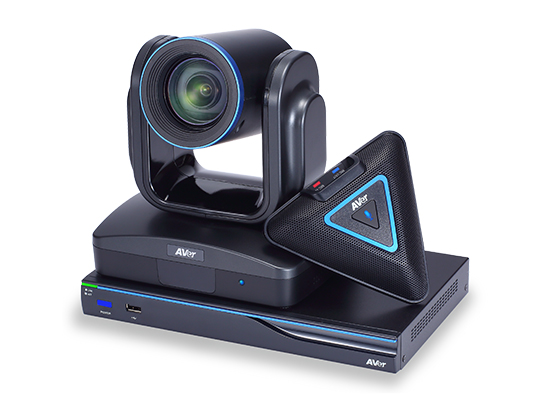

AVer EVC150 HD Video Conferencing Endpoint

The AVer EVC150 is video conferencing’s price-to-performance leader, offering small to medium-scale organizations a uniquely cost-effective full HD video conferencing solution. The EVC150 features real-time full HD video streaming and HD 720p content sharing along with a PTZ camera, an microphone array, a sleek UI and a compact system design. In addition to its impressive hardware, the EVC150 comes with a 3-year standard warranty and remarkably low total cost of ownership, translating into an astounding return on investment. Whether for point-to-point conferencing, cloud-based video collaboration or hardware system integration, the standards-based EVC150 is the system of choice for savvy VC users.

AVer EVC150 Key Features

  • Full HD video & HD content sharing - Experience natural, real-time video communication on one monitor at HD 1080p 30fps, while sharing presentation files, animation, visualizer images and more on another at HD 720p 30fps, creating a smooth, interactive video conferencing experience.
  • One-touch recording - Record your video conferences- including video, audio and shared content- directly to a USB flash drive, creating video archives and helping avoid post-meeting information loss. Play back recorded meetings using your EVC150, or on your PC using AVer’s VCPlayer software.
  • PTZ camera with 18X total zoom - The EVC150’s powerful full HD PTZ camera offers 12X optical zoom plus 1.5X digital zoom, as well as +/-130° pan and +90°/-25° tilt, quick auto-focus and clear close-ups of participants, making it ideal for any size of conference room.
  • Connect up to 4 microphones via daisy-chain - The EVC150’s all-new microphone array and codec employ an array of sophisticated audio processing technology, such as advanced noise reduction, automatic gain control and echo cancellation, producing crisp, true-to-life sound even better than previous AVer systems.
  • Remarkable 100 camera presets - No need to waste time panning and zooming manually during EVC150 video conferences – simply program its presets on the remote control ahead of time, and during meetings you can shift the camera from a wide view of the room to a close-up of an object with just the press a button.
  • Handy integration & remote access tools - Access EVC150 remotely and troubleshoot issues using WebTool, AVer’s web-based management platform, and leverage advanced network technology Wake-on-LAN (WOL), Telnet, network test, and HELPeRTM to make the EVC150 the perfect device for integration via LAN or the internet.
AVer EVC150 - Technical Specifications

Package Contents

  • Main system unit (codec)
  • The New eCam PTZ camera
  • EVC microphone array
  • IR remote control with batteries
  • Power supply
  • Cables
  • Warranty card
  • Quick guide

Communications

  • H.323, SIP and SIP TLS standards
  • 64Kbps~4Mbps
  • RJ45 network LAN (10/100/1000)
  • Manual bandwidth settings

Camera

  • Support for single camera*
  • The New eCam PTZ camera :
    - 2-mega pixel CMOS sensor
    - 18X total zoom (12X optical + 1.5X digital zoom)
    - ±130° pan; +90°/-25° tilt
    - Field of view (H): 72°
    - Field of view (V): 43°
    - Field of view (Diagonal): 82°

People Video Resolutions

  • HD1080p (1920 x 1080)
  • HD720p (1280 x 720)
  • 480p (848 x 480)
  • 4CIF (704 x 576)
  • 4SIF (704 X 480)
  • 360p (640 X 360)
  • W288p (512 x 288)
  • CIF (352 x 288)
  • SIF (352 X 240)
  • All resolutions at 30fps

Content Video Resolutions

  • Supported Resolutions:
    - WSXGA (1440 x 900)
    - HD (1360 x 768)
    - SXGA (1280 x 1024)
    - SXGA (1280 x 960)
    - WXGA (1280 x 800)
    - XGA (1024 x 768)
    - SVGA (800 x 600)
    - VGA (640 x 480)
  • Output Resolutions:
    HD720p (1280 x 720) up to 30fps

Video Standards

  • H.264, H.264 HP, H.264 SVC, H.263+, H.263, H.261 (available with future firmware upgrade)
  • H.239 dual video streams
  • BFCP content sharing

Video Inputs

  • EVC eCam camera
  • VGA

Video Outputs

  • HDMI
  • VGA

Audio Standards

  • G.711, G.722, G.722.1, G.728, G722.1C licensed from Polycom®

Audio Features

  • Automatic gain control (AGC)
  • Advanced noise reduction
  • Acoustic echo cancellation (AEC)

Audio Inputs

  • EVC microphone daisy chain up to 4
  • Line-in (3.5 mm)

Audio Outputs

  • Digital audio on HDMI cable
  • Line-out (3.5 mm)

Other Supported Standards

  • H.224, H.225, H.245, H.281, H.323 Annex Q, H.460

User Interface

  • Multiple layout styles
  • User-friendly OSD (22 supported languages: English, Traditional Chinese, Simplified Chinese, Czech, Danish, Dutch, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Romanian, Russian, Spanish, Swedish, Thai, Turkish)
  • Display/edit site name

Network

  • 10/100/1000Mbps
  • NAT/firewall traversal
  • High Efficiency Lost Packet Recovery (HELPeR™)
  • API support via Telnet
  • Wake-on-LAN (WOL) support
  • IPv4 and IPv6 support
  • QoS
  • Network Test

Security

  • AES (Advanced Encryption Standard) function (128-bit)
  • Password protection for system settings
  • Password protection for remote system management

Web Management Tool

  • Remote management through the Web
  • Live monitoring via the web
  • Firmware update via Ethernet/Internet
  • Phonebook download/upload/edit
  • Restore system settings

Value-Added Features

  • Meeting Recording
    - In meeting and offline recording
    - Save directly to USB flash drive
    - Supports screen re-layout during playback
    - Playback and file conversion via VCPlayer software (.mov/.mp4 format)
  • Speed dialing via hot keys (10 sets)
  • camera presets (10 positions)
  • Network Time Portocol (NTP)
  • ScreenShare support
  • VCLink support

Power Supply

  • AC 100V~240V, 50/60Hz
  • Consumption: EIAJ 12V, 4A

Physical Characteristics

  • Package dimensions: 376 x 300 x 243 mm
  • Package weight: 6.49kg/14.31lbs
  • Main system (codec): 260 x 158.7 x 33 mm
  • New eCam PTZ camera: 180 x 144 x 184 mm
  • EVC microphone array: 131.9 x 118.6 x 25.5 mm

Optional Accessories

  • Additional microphone
  • eCam camera mount
  • Replacement eCam Focus camera

Warranty

  • 3-year standard warranty**

* Only one camera can be used at a time.
** For detailed warranty information, please contact an AVer representative.

PHYSICAL CHARACTERISTICS

  • POWER
    POE 802.3af/802.3at
    48VDC input
