Availability: 1-2 week lead time

The CyberData 3-Port Ethernet Switch enables users of a PC to split a single Ethernet port into two Ethernet ports. The power for the switch is supplied by the PC.

Features

• 3-port auto-negotiating (no cross or cable required)
• 10/100 full duplex
• USB or PS/2 mouse-powered (no external power supply required)
• Link/Status and connection speed LEDs
• Low power
• RoHS compliant

Technical Details

• All ports are 10/100Mbps (10Base-T or 100Base-T) auto sensing based upon the port's individual connection
• Each port has auto MDX - any port can be used as the uplink connection
• Fully compliant to IEEE 802.3u standard
• On-chip 64KB frame buffer memory (not shared with 1k unicast address table)
• Automatic address learning, address aging and address migration
• Integrated lookup engine with 1k unicast MAC addresses
• 1.4Gbps high performance memory bandwidth

Specifications

• Ports 3 x RJ45, 1 x USB-B
• Dimensions2.75” L x 3.78” W x 1.1” H
• Warranty 2 Years
• Unit Weight 0.2 lbs
• Part Number 010988
• Standards IEEE 802.3u
• Modes 10BASE-T, 100BASE-TX
• Power - 350mA at 5 volts (supplied by either an USB or PS/2)
• LEDs Link/Status and Connection Speed
• Operating temp 0 to 70 degrees Celsius
• Boxed Weight 0.3 lbs

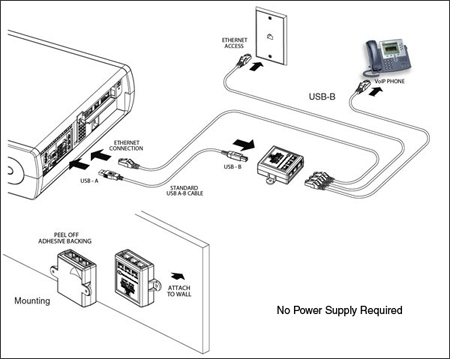

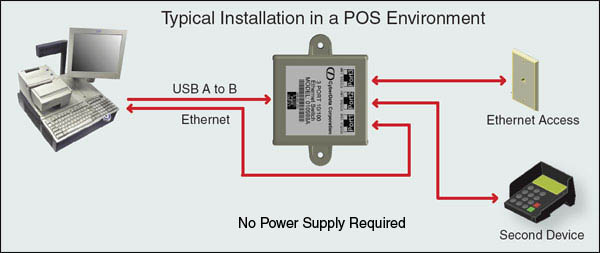

Installation
