CyberData Clock Kit Wall Mount Adapter, Signal White (011154)

The CyberData Clock Kit enables the CyberData V2 Ceiling Speaker for wall mounting.

Key Features:

• Easy wall or ceiling installation
• Mounting kit included
• Electrogalvinized steel construction
• RoHS compliant
• Keyhold for easy installation
• Top and bottom cable channels
• 2.3-inch sized digits
• 12 or 24 hour format
• NTP time source
• Battery backed up real-time clock
• Auto ambient light adjustment
• Two year warranty

The Clock Kit enables the CyberData V2 VoIP Ceiling Speaker to be upgraded to a highly visible public address device with a time display. The large display characters are easily read and adjust for ambient light conditions. Time sync is performed by NTP and a built-in real-time clock. Power is supplied by the CyberData V2 Speaker from a single PoE connection.

The VoIP Clock Kit consists of the VoIP V2 Ceiling Speaker and either the Clock Kit Wall Mount Adapter or the Clock Kit Flush Mount Adapter.

See the following table for color options and part numbers:

Clock Kit Specifications

• Mounting kit: Yes
• Material: Electrogalvanized Steel
• RoHS Compliant: Yes
• Time Source: NTP
• Battery Backup: Yes
• Warranty: 2 Year Limited
• Part Numbers: *011153, Wall Mount, Standard Color, RAL 9002, Gray White
• 011154, Wall Mount, Optional Color, RAL 9003, Signal White
• *011106, Flush Mount, Standard Color, RAL 9002, Gray White
• 011107, Flush Mount, Optional Color, RAL 9003, Signal White
• *These numbers replace the 011023 (Wall) and 011024 (Flush) numbers.

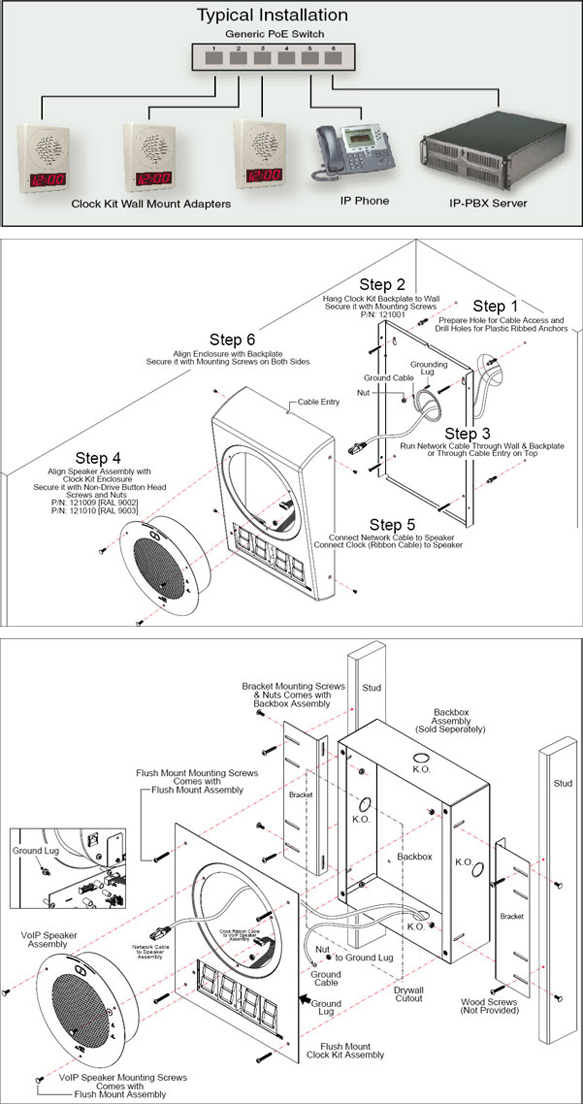

Installation
