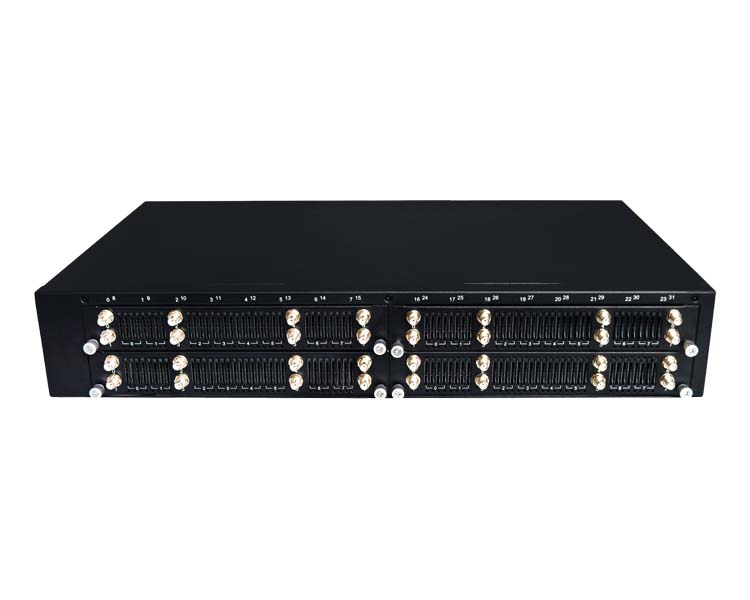

Dinstar UC2000-VG-32GM 32 Port GSM VoIP Gateway

0 Based on 0 ratings.
Write a Review

Key Features
  • HTTP API for Bulk SMS
  • Auto Call/SMS Generation
  • Auto Update SIM Number and Balance Check

Pricing Volume Price Discounts

No volume pricing discounts available

Shipping Shipping Options

Shipping costs are calculated based on weight and destination during checkout. For next day delivery our cut off is 16:00.

Support Product install/setup

Want help installing this product? Add premium support to your order.

Downloads Documents & Manuals

SKU:UC2000-VG-32GM
Brand:
Available Options:
  • Product Details
  • Reviews
  • White Papers / Case Studies
Please Note: This product has been discontinued. Please see the Dinstar UC2000-VG-32G 32 Port GSM VoIP Gateway for an available alternative.

Dinstar UC2000-VG-32GM 32 Port GSM Channels Built in Antenna combiner Quad-band 850/900/1800/1900 MHz G.711.G.723.1.G.729A IMEI Changer Support SIMBank

The Dinstar UC2000-VG-32GM 32 Port GSM VoIP Gateway is a multi-functional product used to effectively implement the smooth transition between PLMN (Mobile) and VoIP network. The UC2000-VG gateway is designed for comfort, ease-of-use to satisfied necessary of customers. It is not only inherits tradition of quality voice communication over IP network but reduce the human resource of VoIP network deployment. It's a cost-effective gateway for call termination (VoIP to GSM) and origination (GSM to VoIP). It is fully compatible with leading Soft-switch and SIP server.

Dinstar UC2000-VG-32GM Key Features

  • 32 GSM Channels with 128 SIM Slots, Easy to Conduct SIM Rotation Locally
  • GSM: 850/900/1800/1900MHz; CDMA: 800MHz; WCDMA: 850/900/1900/2100MHz
  • Built-in Bandwidth Saving, Signaling&RTP Encryption
  • HTTP API for Bulk SMS
  • Auto Call/SMS Generation
  • Auto Update SIM Number and Balance Check
  • No Balance Alarm and Call Minutes Limitation
Dinstar UC2000-VG-32GM - Technical Specifications

Voice Processing

  • Protocol: SIP v2.0, RFC3261
  • Codecs:G.711A/U law, G.723.1, G.729A/B
  • Silence Suppression
  • Comfort Noise Generator(CNG)
  • Voice Activity Detection(VAD)
  • Echo Cancellation: G.168 with up to 128ms
  • Dynamic Jitter Buffer
  • DTMF: RFC2833, SIP Info
  • Call Progress Tone Generation
  • Programmable Gain Control
  • NAT: STUN, Dynamic NAT, Static NAT

Mobile

  • SIM Interface: 1.8v, 3.0v SIM Interface
  • Frequency Range:
    GSM: 850/900/1800/1900MHz; CDMA: 800MHz
    WCDMA:850/900/1900/2100MHz
  • USSD Encoding: Unicode/ASCII
  • HTTP API for SMS
  • Polarity Reversal
  • PIN Modify
  • Carrier Auto/Manual Selection
  • CID/CLIR
  • BCCH
  • SMS Send and Receive
  • SMS to Email
  • Call Waiting/Call Back
  • Call Forward
  • GSM Audio Coding: HR, FR,EFR, AMR_FR,AMR_HR

Software Features

  • Calling Type:
    Mobile to VoIP, VoIP to Mobile
  • SIP Trunk and Trunk Group
  • Caller/Called Number Manipulation Rules
  • SIP Codes Mapping
  • White/Black List
  • PSTN Hotline
  • VoIP Hotline
  • Password authentication for incoming and outgoing calls
  • Abnormal Call Monitor
  • Call Minutes Limitation for Ports/Single Call
  • Auto SMS/Call Generation
  • Balance Check
  • Low Balance Alarm
  • Auto Update SIM Number
  • Random Call Interval
  • Abnormal Call Monitor
  • SIM Rotating by
    SIM Run Time
    SIM Balance
    Bandwidth Saving
  • Signaling & RTP Encryption

Network

  • Static IP, DHCP Client, PPPoE
  • Network Protocols:
    TCP/UDP,TFTP, FTP, RTP/ RTCP, SSH,ARP,RARP,ICMP Ping, NTP, HTTP, DNS
  • Static/Dynamic ARP Request

Maintenance

  • Web/Telnet Configuration
  • Configure Backup/Restore
  • Firmware Upgrade by HTTP/TFTP
  • Factory Reset
  • CDR (10000 Lines CDRs Storage Locally)
  • Syslog/Filelog
  • Ping and Tracert
  • Traffic statistics: TCP,UDP,RTP
  • VoIP Call Statistics
  • PSTN Call statistics: ASR,ACD,PDD
  • Voice Dialogist with Loopback
  • GSM Network Dialogist
  • IVR Customization
  • Auto Provisioning
  • SIP/RTP/PCM Capture

Physical Interface

  • Mobile: 32 GSM Channels
  • SIM Card Slots: 128
  • Ethernet Interfaces:
    2*10/100 Base-T, RJ45
  • LED Indicators: Power, RUN, Signal Strength Indicators
  • Console:
    1* RS232 115200bps

Environmental

  • Power Supply:
    100-240VAC,50-60Hz
  • Power Consumption: 68w
  • Operating Temperature: 0 ℃~ 40 ℃ Storage Temperature: -20 ℃~80 ℃
  • Humidity: 10%-90% Non-Condensing
  • Dimensions(W/D/H): 440×270×75mm
  • Unit Weight: 4.7kg
