Please Note: The VigorSwitch P1100 has been discontinued. For an alternative, we recommend the VigorSwitch P1092.

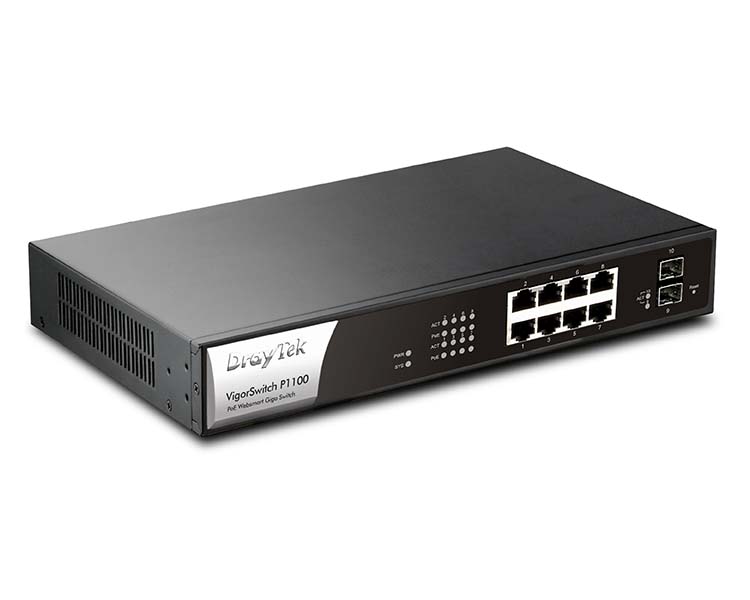

Draytek VigorSwitch P1100 Gigabit Switch

The DrayTek VigorSwitch P1100 Gigabit Ethernet switch is an 8-port device providing all ports with full-power PoE and four of them with extended power PoE+ (802.3at).

Draytek VigorSwitch P1100 Key Features

  • 8-Port PoE / PoE+ Ethernet Switch
  • 8 Gigabit RJ-45 Ports & 2 Gigabit SFP Ports
  • All ports full power PoE+ 802.3at & 802.3af
  • 120 Watts total PoE Power budget
  • QoS & Port/Tagged VLANs
  • SNMP v1/v2c
  • Fanless (Silent) Operation
  • IPv4 / IPv6 dual-stack
  • Rack-mountable (brackets included)

PoE is ideal for any PoE-enabled devices, including:

  • IP telephones (for example as part of an IP PBX)
  • Wireless access points
  • IP Cameras (Network cameras)
  • Any other device supporting PoE (802.3af / 802.3at)

All 8 RJ-45 ports and the 2 SFP ports are full speed Gigabit (1000Mb/s) Ethernet. As well as ensuring that your wired Ethernet devices get maximum speed, Gigabit on PoE RJ-45 ports is is particularly useful on a network where your PoE devices are providing Gigabit devices to a secondary device, for example, IP phones to desktop PC using their loop/passthrough support if it supports Gigabit Ethernet. The two Gigabit SFP ports to accept SFP modules (not supplied), such as for fibre connectivity/uplinks. Regular, non-PoE devices can still connect to the switch so will also still take advantage of the Gigabit speed so ideal for a mixed environment. The P1100 includes rack mounting bracket/kit as standard or it can be placed on a desk/shelf.

Draytek VigorSwitch P1100 - Technical Specifications

Physical Ports:

  • 8 RJ-45 Ethetnet Ports (1000Gb/s)
  • 2 SFP Sockets for SFP modules (1Gb/s)
  • Reset Button (for factory reset)
  • Power Switch (on rear of case)

QoS Features

  • Support up to 8 queues
  • Port-based Rate Limit (ingress/egress)
  • Queue Setting: Weight Rated (WRR) or Strict Priority
  • Class of Service:
    • Port-based
    • CoS
    • DSCP
    • CoS-DSCP
    • IP Precedence

VLAN

  • 802.1q Tag-Based LAN
  • Port-Based VLAN (Common/Distinct Groups)
  • Static VLAN
  • Port Isolation
  • Management VLAN
  • Voice VLAN (OUI Mode)

Link Aggregation

  • 8 Link Aggregation Groups
  • Up to ports per group
  • Static and LACP group members
  • Traffic & Load Balancing

IGMP Snooping

  • IGMP Snooping v2/v3
  • IGMP v2/v3 Querier
  • Up to 256 Multicast Groups
  • Immediate Leave

Network Features

  • MAC Addresses Supported: 8K
  • Buffer Memory: 128KB
  • Jumbo Frames up to 10Kb
  • STP & RSTP
  • SNTP
  • Wirespeed Packet filtering & Forwarding
  • Storm Control & DoS Attack Mitigation

PoE / PoE+

  • 48V/DC per Port Output
  • 30 W Max per Port
  • Loop detection & power control
  • Total PoE Power Budget: 120W
  • Port LEDs: Link / Act, PoE
  • PoE LED : Act/ Status
  • Dynamic or Static (Priority Based) configuration

Standard Compliance

  • 802.3 10BaseT
  • 802.3u 100BaseTX
  • 802.3ab 1000BaseTX (Gigabit)
  • 802.3x Full-duplex and Flow Control
  • 802.3x Flow Control
  • 802.3af Power over Ethernet (PoE
  • 802.3at Power over Ethernet (PoE+)
  • 802.1q VLAN
  • 802.1p Class of Service
  • 802.1d / 802.1w Rapid Spanning Tree
  • 802.3ad Port Trunk / LACP
  • 802.1ab Link Layer Discovery (LLDP)
  • 802.1az Energy Efficient Ethernet

General

  • Power Consumption: 150 Watts (Max)
  • Operational Temperature: 0-40°C
  • Storage Temperature: -20 to 70°C
  • Humidity: 10-90% RH (Non-condensing)
  • Physical Dimensions: 266 × 185 × 44 mm (L x W x H)
  • Silent operation (fanless)
  • Weight : 1.4kg
  • Rack Mountable (brackets included)
  • Power : 220-240VAC, IEC input (UK Cable included, 1.8M)
  • Warranty : 2 Year RTB
  • Certification : CE, ROHS
