Escene IS720 IP Intercom

Please Note: This product may have a lead time of up to 1-2 weeks. Please call 0330 088 0195 and speak to our sales team who can confirm the current available stock for your requirement

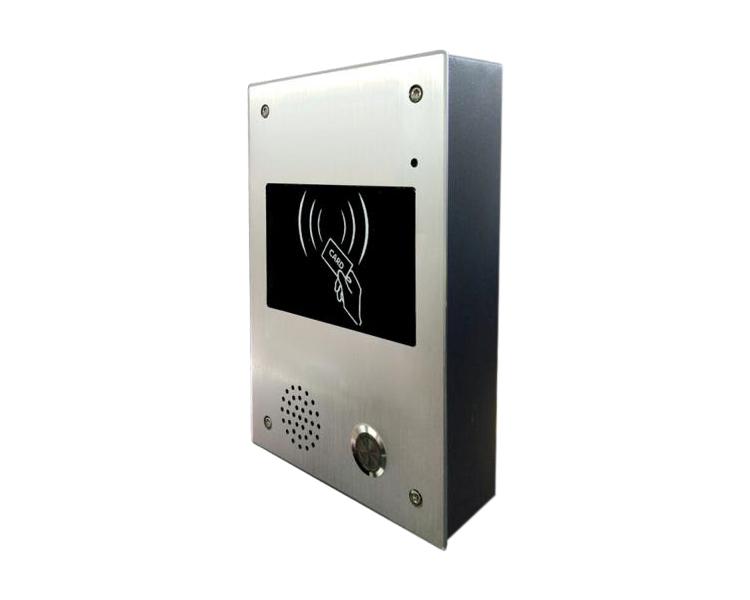

The Escene IS720 IP Door Phone has a professional design and meets the requirements of industry users. The IS720 is dust proof, water proof and has dismantle prevention. The IS720 enables door opening by long-distance DTMF, Password and RFID. With powerful performance, stability and reasonable price, the IS720 is a perfect choice for industry users.

Escene IS720 Key Features

  • Supports embedded or wall-mounted installation
  • High-fidelity sound quality, HD codecs, Full duplex hands-free calls;
  • WEB supports multi-language: Chinese, Russian, French, etc.
  • 2 SIP accounts, support 3-way conferencing;
  • 2*RJ45 standard Ethernet Ports(LAN/PC), Support PoE;
  • Backlit Digital Keyboard, can provide dial-up or password input(Option);
  • *Built-in RFID reader; Indoor open-door interface and external power supply interface;
  • User-defined DSS keys, which can be set up to Speedy dial, intercom,etc.
  • Supports Plug-and-Play, auto-provision, remote maintenance and management;

NOTE: IS720-PRT, P is POE, R is Reader(optional), T is Touchpad(optional).

Escene IS720 - Technical Specifications

Advanced Features

  • Built-in RFID Reader
  • Built-in Indoor-open interface
  • Built-in External Power interface
  • Built-in Relay
  • Open the Door ways:DTMF/PWD/RFID Card
  • SN-SG Log, Remote access list
  • Support RFID Card

IP PBX System Integration

  • DND&Call Transfer
  • Intercom, Paging
  • Anonymous call, Anonymous call rejection
  • Network conference, Distinctive ring tone,
  • Call pickup, Dial Plan, Call recording
  • Intercom, Paging, Music on hold

Codes and Voice Features

  • Wideband Codec: G.722
  • Narrowband codec: G.711μ/A, G.723.1
  • G.726, G.729AB,VAD, CNG, AEC, AGC
  • Full-duplex,

Network Features

  • SIP v1 (RFC2543), v2 (RFC3261)
  • SIP connection: Proxy mode & Peering Points mode,
  • DNS SRV (RFC3263)
  • Redundant server support
  • NAT Traversal: STUN mode
  • DTMF: In-Band, RFC2833, SIP Info, Auto
  • HTTP/HTTPS Web Management
  • IP Assignment: Static/DHCP/PPPoE
  • Bridge/Router mode for PC port
  • Telnet/HTTP/HTTPS server
  • DNS client, NAT/DHCP server

Management

  • Auto-provision via FTP/TFTP/HTTP/HTTPS
  • SNMP V1/2 , TR069
  • Configuration: browser/phone/auto-provision
  • Trace package and system log export

Security

  • 802.1x, VLAN QoS (802.1pq)
  • Transport Layer Security (TLS)
  • Digest authentication using MD5/MD5-sess
  • Secure configuration file via AES encryption
  • Phone lock for personal privacy protection

Physical Features

  • 1*Digital Keypad, backlit digital (Option)
  • 1*Speaker Key or DSS key
  • 1*Power Light, 1*Network&SIP Light
  • 1*Talking status light
  • 2*RJ-45 10/100M(LAN/PC)
  • Support PoE: IEEE802.3af class 0
  • Embedded or wall-mounted installation
  • Power: 12V/1A DC
  • RFID/ IC Card
  • Minimized Power:4W
  • Maximum Power: 6W
  • Operating humidity: -30~60℃
  • Storage temperature: up to 60°C
  • Relative Humidity:10-90%

Package Features

  • Qty/CTN: 20PCS
  • N.W/CTN: 9.4KG
  • G.W/CTN: 12KG
  • Measurement: 0.068CBM(0.5% more or less)
  • Dimension: 162X112X41MM
  • Carton Meas: 365X365X270MM
  • Admin/User 2-level configuration mode
