Fanvil EXP200 Colour Screen Expansion Module

0 Based on 0 ratings.

Key Features
  • 5 inch 480x854 colour-screen LCD
  • 2 separate page buttons
  • Stand with 2 adjustable angles

Pricing Volume Price Discounts

No volume pricing discounts available

Shipping Shipping Options

Shipping costs are calculated based on weight and destination during checkout. For next day delivery our cut off is 16:00.

Support Product install/setup

Want help installing this product? Add premium support to your order.

Downloads Documents & Manuals

SKU:EXP200
Brand:
Available Options:
  • Product Details
  • Reviews
  • White Papers / Case Studies
Please Note: This product has been discontinued. Please see the Fanxil X210 as an alternative product.

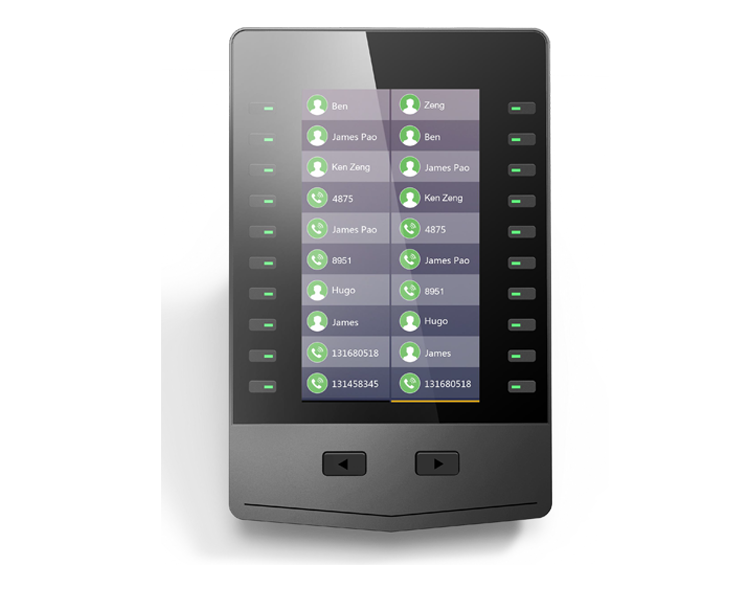

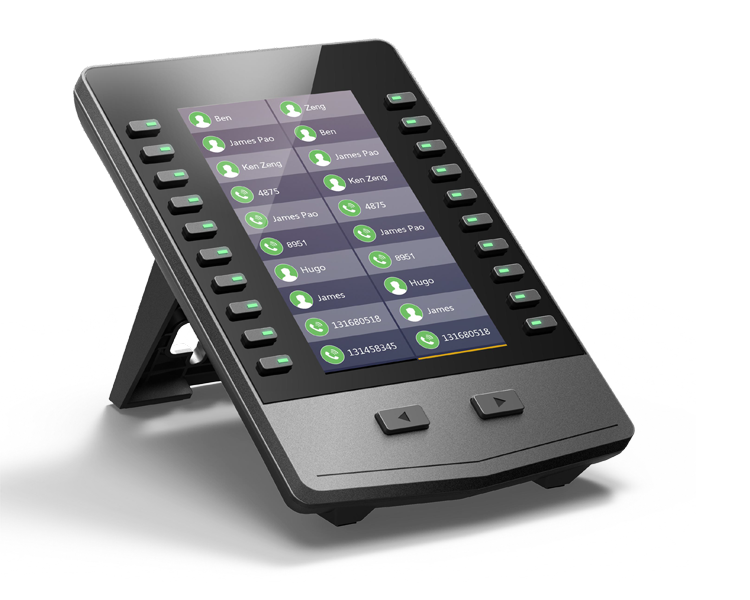

Fanvil EXP200 Colour Screen Expansion Module

The Fanvil EXP200 is a colour-screen Expansion Module that applies to Fanvil IP Phones (X5S, X6). It is designed to expand the functional capability of your SIP phone to a whole new level. The EXP200 consists of 20 editable keys and a 5 inch LCD display. The EXP200 supports the traditional call features on each of its programmable buttons, BLF (busy lamp field, standard or event list), call park/pickup, speed dial, presence, intercom, and conference/ transfer/forward. The EXP200 is the ideal solutions for any receptionist or businesses managing high call volumes.

Fanvil EXP200 Key Features

  • 5 inch 480x854 colour-screen LCD
  • 20 physical keys on each page with dual-colour LEDs
  • 2 separate page buttons
  • Stand with 2 adjustable angles
  • Support multiple Expansion Modules in series

Intuitive Visualisation

A 5-inch 480x854-pixel colour screen greatly enriches your visual experience. In addition, the colour icons for DSS keys offer you a new operating experience. Its two independent control keys on the bottom are used for fast switching to the corresponding page.

High Expandability

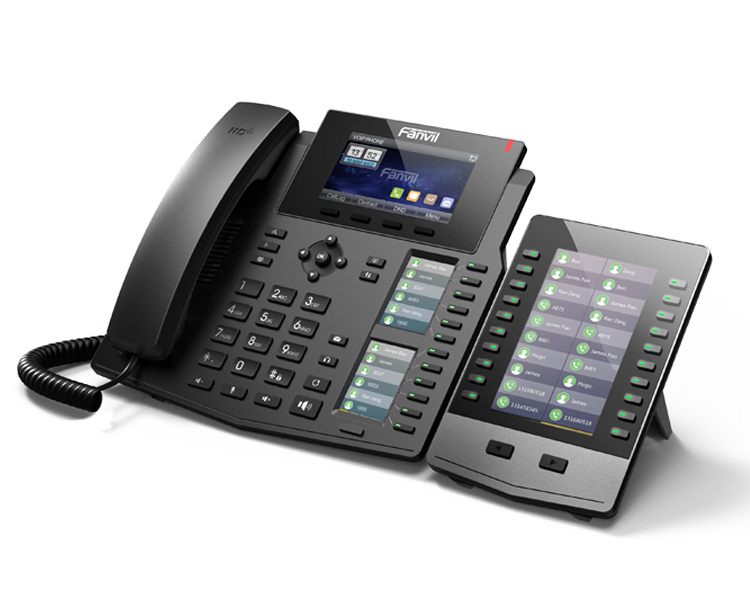

The Fanvil X5S and X6 can be fully equipped with up to three EXP200 Colour screen Expansion Modules while adding up to 100 additional buttons. A maximum of five pages of 20 flexible buttons with dual-colour LED are shown on the display and can be programmed up to 60 various features including speed dialling, BLF/BLA, call forward, transfer and more. .Thus, it will help you effectively manage high volumes of concurrent calls, effortlessly monitor calls and boost personal productivity.

Fanvil EXP200 Technical Specification

Screen

  • 5" 480x854-pixel colour display screen
  • LCD with backlight
  • Different colour icons for each function shown on the LCD

Features Keys and Indicator

  • 20 physical keys each with a dual-colour LED
  • 100 additional keys through page switch
  • 2-page keys are used for fast switching pages
  • Programmable for shared line, BLF List, call park, Intercom, conference, forward, group pickup, group listening, LDAP, URL et.

Physical

  • Stand with 2 adjustable angles
  • DC Power Input: 5V/2A
  • A power supply supports three expansion in series.
  • The first expansion external power adapter (5V/2A) is required
  • 2 RJ45 data port ( IN and OUT )
  • Applies to X5S, X6
  • Working Temperature: 0~40℃
  • Working Humidity: 10~95%
  • Device Dimensions: 181 x 116 x 142mm
  • Gift Box Dimensions: 195 x 170 x 58mm
  • Outer CTN Dimensions: 360 x 315 x 220mm(10 Pcs)
