Generic

• 2 SIP Lines
• PoE enabled
• Full-duplex speakerphone (HF)

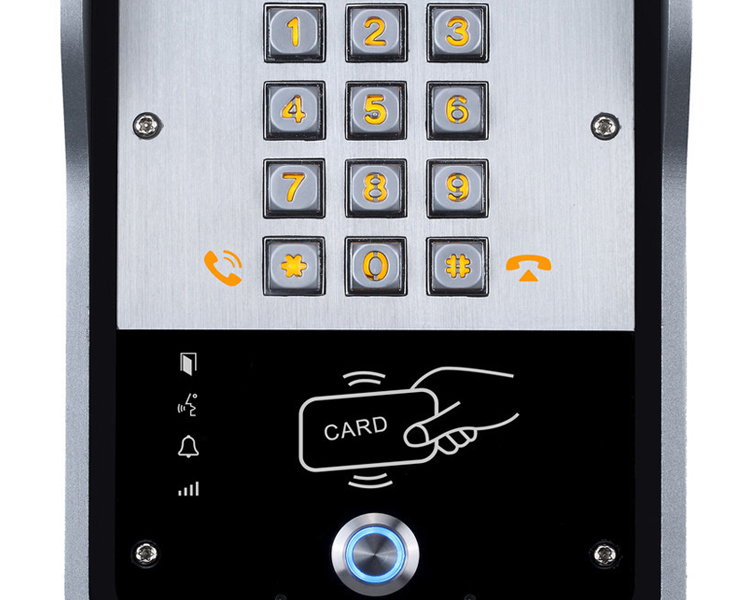

• Numeric keypad (dial pad or password input)
• Intelligent DSS keys (speed dial, intercom, etc)
• Integrated noise reduction module with dual MICs
• 1 indoor switch interface
• 1 electric lock relay
• 2 short-circuit output relays(optional)
• Anti-tamper switch
• External power supply
• Status indication with icons: door opening, talking, call incoming, network/SIP working
• Access control: call, password, RFID card, indoor switch
• Door phone, intercom, and paging to one device
• Protection level: IP65, IK10
• Wall mounting/ Flush mounting

Call Features

• Voice intercom
• Speed dial
• Auto-answering (per line)
• Voice message (on server)
• Barge in/ Calls switched automatically
• Local 3-ways conference
• Hotline

Phone Features

• High-quality voice calls
• Support SIP 2.0 and related RFCs
• Call logs (dialed/incoming/missed)
• Door access logs
• Support 500 RFID cards
• Programmable DSS keys
• Network Time Synchronization
• Action URL / Active URI

Audio

• Wideband codec: G.722
• Narrowband codec: G.711a/u, G.723.1, G.726-32K, G.729AB
• Full-duplex, Acoustic Echo Canceller (AEC) up to
  96ms
• Voice Activity Detection (VAD) / Comfort Noise
  Generation (CNG) / Background Noise Estimation
  (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF: In-band, Out of Band (RFC2833) / SIP INFO
• Long distance voice pickup up to 5 m

Networking

• 802.3af PoE
• IP Configuration: Static / DHCP / PPPoE

Compatibility

• Network Access Control: 802.1x
• VPN: L2TP / PPTP / IPSec
• VLAN: 802.1p/q
• QoS: DSCP

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• PPPoE
• 802.1x
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• Tr069

Deployment & Maintenance

• • Auto-Provisioning via
  FTP/TFTP/HTTP/HTTPS/DHCP/TR069/SIP PNP
• Web Management Portal
• Web-based Packet Dump
• Configuration Backup/Restore
• Entry Log Export
• Access Table Export/Import
• Firmware Upgrade
• Syslog (include door access logs)

Physical Specifications

• Buttons:
  Numeric keypad
  1 DSS Key
• Ethernet:
  WAN-- 10/100BASE-Tx with auto-MDIX (RJ45) LAN-- 10/100BASE-Tx with auto-MDIX (RJ45)
• PoE: 802.3af, Class 3 (WAN port)
• Main Chipset: Broadcom
• Passive Switch(short-circuit output): NC/NO
  contacts, max 30V/1A AC/DC
• Active Switch Output: 12V/700mA DC
• RFID/IC Card:EM4100(125kHz),MIFARE ONE(13.56MHz)，NFC(optional)
• Audio Amplifier: 2.4W
• Cables: CAT5 or better
• Power Supply:12V±15%/1A DC or PoE
• Shell Material: Aluminum alloy
• Protection level: IP65, IK10
• Storage Temperature:-40~70℃
• Working Humidity: 10~90%
• Device Dimension: 223 x 130 x 74mm (W x H x L)
• Package Weight:1.85KG
