Fanvil X3S V2 IP Phone Non PoE (X3S V2)

0 Based on 0 ratings.
Write a Review

Key Features
  • 4 SIP Lines
  • HD Voice
  • 2.4" (320 x 240) LCD colour screen

Pricing Volume Price Discounts

No volume pricing discounts available

Shipping Shipping Options

Shipping costs are calculated based on weight and destination during checkout. For next day delivery our cut off is 16:00.

Support Product install/setup

Want help installing this product? Add premium support to your order.

Downloads Documents & Manuals

SKU:X3S V2
Brand:
Available Options:
Available Product Options:
Need Product Setup / Training / Support?:
Wired Headset:
Wireless Headset:
  • Product Details
  • Reviews
  • White Papers / Case Studies
Please Note: This product has been discontinued. For an alternative, please see the other Fanvil IP Phones.

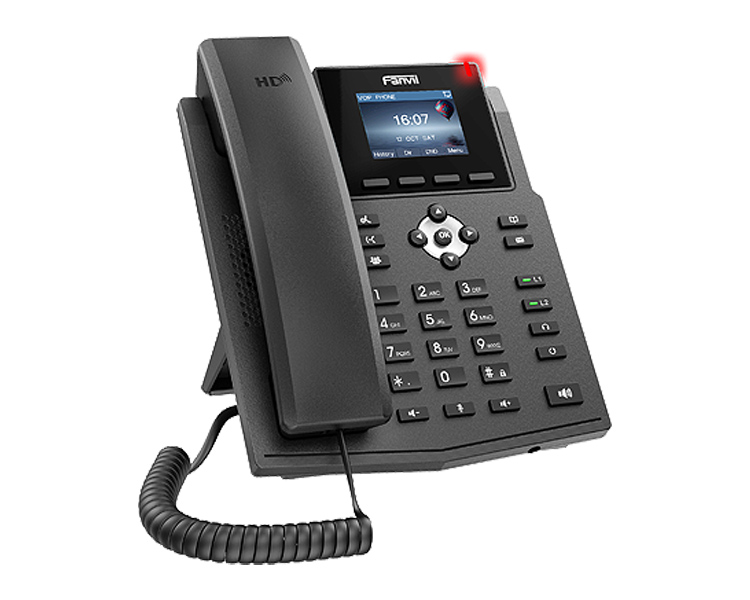

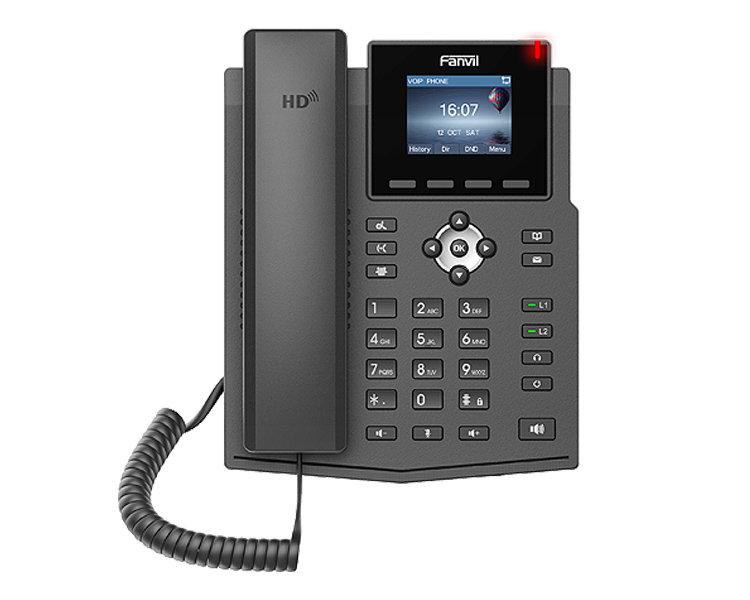

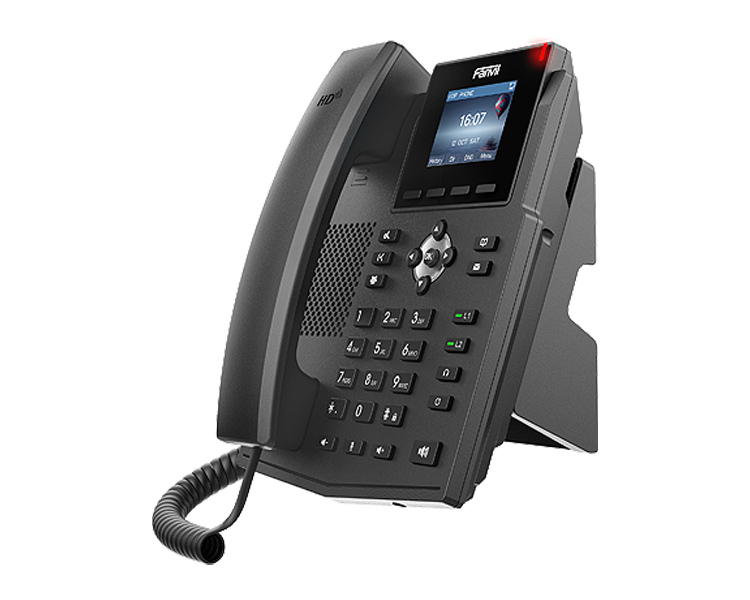

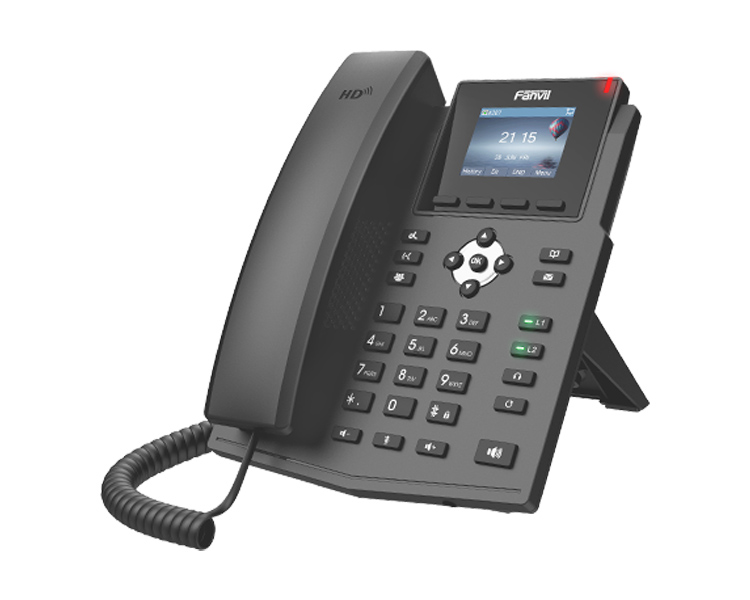

Fanvil X3S V2 IP Phone Non PoE (X3S V2)

The Fanvil X3S IP Phone is an entry-level colour screen IP Phone. With all the necessary VoIP features and other extended features like EHS headset, it provides a high-quality and convenient experience for users at an affordable price.

Fanvil X3S VoIP Phone Key Features

  • 4 SIP lines, 3-way conference, SIP hotspot
  • 500 local phonebook, caller ID, call hold, call transfer
  • 2.4” main colour display
  • HD audio on speakerphone and handset
  • Support EHS wireless headset
  • Dual Fast ports, integrated PoE
  • Stand with 2 adjustable angles of 45 and 50 degrees
  • Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch,Elastix, Avaya etc.

2.4" Colour Display
Bright 2.4-inch 320x240 colour display on Fanvil X3S new version IP phone, provides high-resolution graphics for the user.

2.4

Enhanced HD Audio Communication
With enhanced HD audio, Fanvil X3S/X3SP new version prevents the background noise from the external environment and presents you ideal HD audio in communication.
HD Audio and Opus

Support EHS headsetFree your Hands
Wireless EHS headset supported by Fanvil X3S/X3SP new version through EHS cable allows you to deal with other issues while making a phone call, which is more productive in many working spaces.
EHS Headset

Flexible Installation Mode
Not only can Fanvil X3S/X3SP new version be installed in the desktop stand mode with two different angles but also in a wall-mounted mode by an additional hanging part, addressing the diverse applications.



3CX Certified

Fanvil X3S IP Phone - Technical Specifications

Generic

  • 4 SIP Lines
  • HD Voice
  • 2.4-inch colour screen
  • Handset / Hands-free / Headset mode
  • Desktop Stand / Wall-mounted (need an additional wall hangingparts)
  • Optional External Power Supply

Phone Functions

  • Local Phonebook (500 entries)
  • Remote Phonebook (XML/LDAP, 500 entries)
  • Call logs (In/Out/Missed, 600 entries)
  • Black/White List Call Filter
  • Screen saver
  • Voice Message Waiting Indication (VMWI)
  • Programmable DSS/Soft keys
  • Network Time Synchronization
  • Support Plantronics wireless headset (Through PlantronicsAPD-80 EHS Cable)
  • Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
  • Support Recording (Through Server)
  • Action URL / Active URI
  • uaCSTA

Call Functions

  • Call out / Answer / Reject
  • Mute / Unmute (Microphone)
  • Call Hold / Resume
  • Call Waiting
  • Intercom
  • Caller ID Display
  • Speed Dial
  • Anonymous Call (Hide Caller ID)
  • Call Forward (Always/Busy/No Answer)
  • Call Transfer (Attended/Unattended)
  • Call Parking/Pick-up (Depending on server)
  • Redial
  • Do-Not-Disturb
  • Auto-Answering
  • Voice Message (With server)
  • 3-way Conference
  • Hot Line
  • Hot desking

Audio

  • HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHzFrequency Response)
  • HAC handset
  • Wideband ADC/DAC 16KHz Sampling
  • Narrowband Codec: G.711a/u, G.723, G.726-32K, G.729AB, iLBC
  • Wideband Codec: G.722
  • Full-duplex Acoustic Echo Canceller (AEC)
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer
  • DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Network

  • Physical: 10/100 Mbps Ethernet, dual bridged port for PC bypass
  • IP Mode:IPv4
  • IP Configuration: Static IP / DHCP / PPPoE
  • Network Access Control: 802.1x
  • VPN: L2TP / OpenVPN
  • VLAN
  • LLDP
  • QoS
  • RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols

  • SIP2.0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • LLDP
  • PPPoE
  • 802.1x
  • L2TP
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069

Deployment & Management

  • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
  • Web Management Portal
  • Web-based Packet Dump
  • Configuration Export / Import
  • Phonebook Import/Export
  • Firmware Upgrade
  • Syslog

Physical Specifications

  • Main LCD x1: 2.4-inch (320x240) Colour Screen
  • Keypad: 34 keys, including:
     - 4 Soft-keys
     - 7 Function keys (Hold/Transfer/Conference/Phonebook/MWI/Headset/Redial)
     - 2 Line keys (With LED Indicator Light)
     - 4 Navigation keys
     - 1 OK key
     - 12 Standard Phone Digits keys
     - 3 Volume Control keys (Up/Down/Mute (Microphone))
     - 1 Hands-free key (With LED Indicator Light)
  • HD Handset (RJ9) x1
  • Standard RJ9 Handset Wire x1
  • 1.5M CAT5 Ethernet Cable x1
  • Back Rack x1
  • Status Indicator Light x1 (Red)
  • RJ9 Port x2: Handset x1, Headset x1
  • RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
  • Safety Keyhole x1
  • DC Power Input: 5V/0.6A
  • Power Consumption: Idle 0.9~1.65W,Peak 1.8~2.95W
  • Working Temperature: 0~45°C
  • Working Humidity: 10~95%
  • Installation:- Desktop Stand- Wall-mounted (need an additional wall hanging parts)
  • Colour: Black
  • Device Dimensions:
    - Desktop Stand (Angles 1): 169x186.3x174.5 mm
    - Desktop Stand (Angles 2): 169x177.6x183.7 mm
    - Wall-mounted: 169x115.6x212.5 mm
  • Gift Box Dimensions: 274x215x68 mm
  • Outer CTN Dimensions: 450x360x294 mm (10 PCS)

Specifications Tab
