Grandstream GHP611 Compact Hotel Phone
|
|
28/11/2024
/grandstream-ghp611-compact-hotel-phone-p-9995.html
£31.40 exc. VAT
Key Features
- 2 SIP Accounts, 2 Lines
- GDMS online device management and provisioning
- 3-way audio conferencing for easy conference calls
Pricing
Volume Price Discounts
No volume pricing discounts available
Shipping
Shipping Options
Shipping costs are calculated based on weight and destination during checkout. For next day delivery our cut off is 16:00.
Support
Product install/setup
Downloads
Documents & Manuals
SKU:GHP611
|
|
Available Options:
- Product Details
- Specification
- Reviews
- White Papers / Case Studies
- Questions

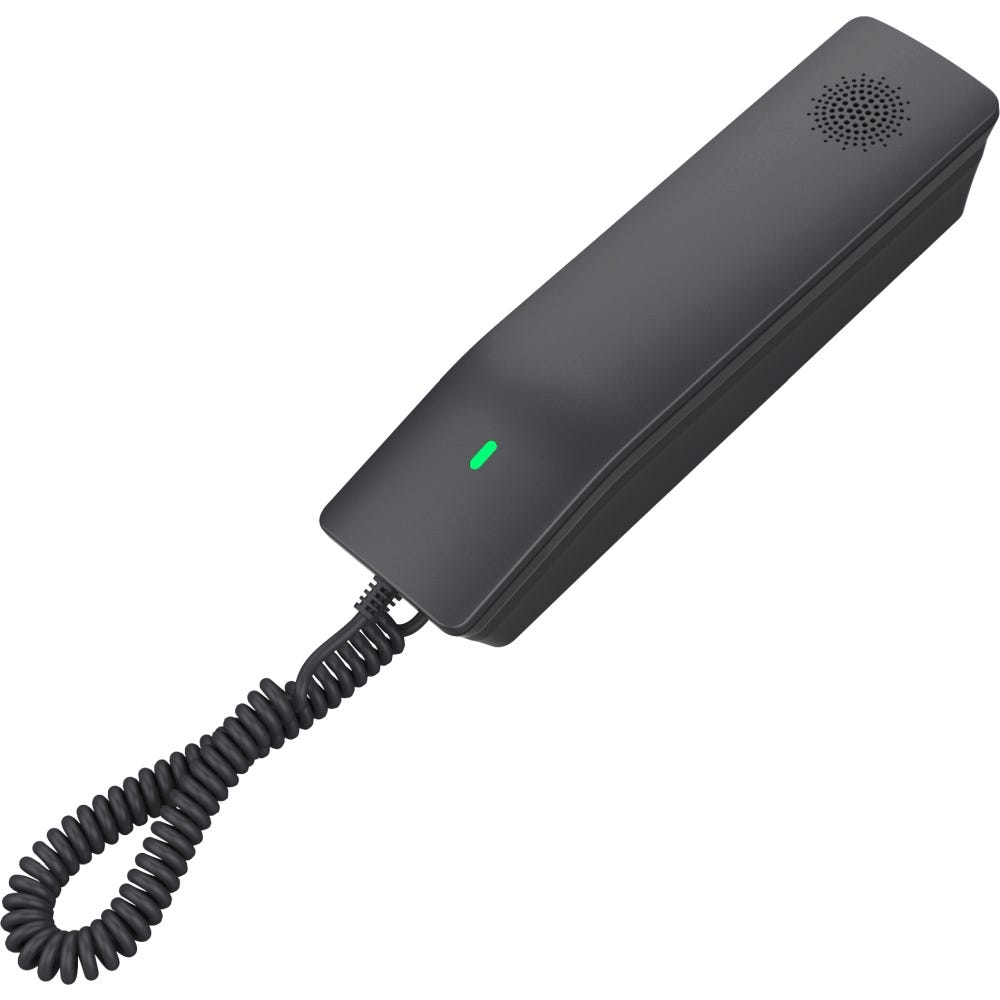

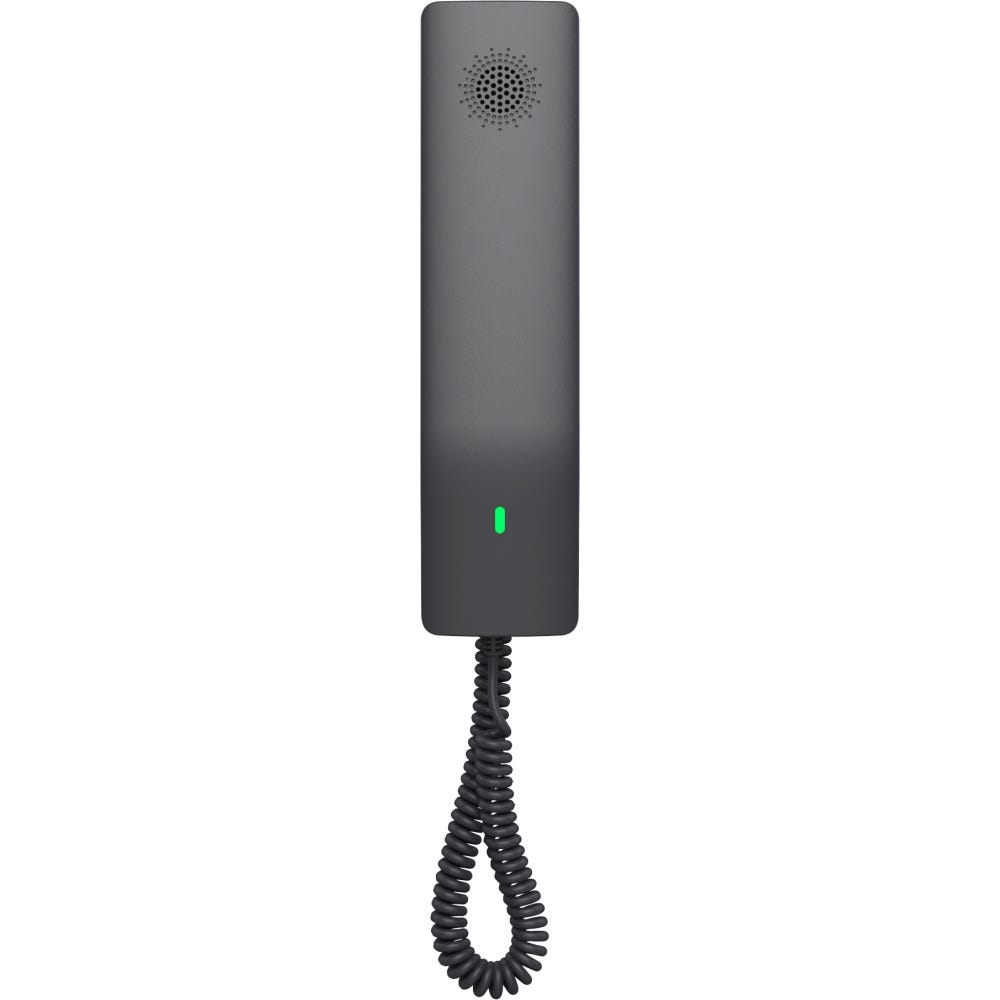

Grandstream GHP611 Compact Hotel Phone
The Grandstrem GHP611 is a compact IP phone that provides an HD speaker on the handset, 2 SIP accounts/lines, 10 speed dial keys and 3 programmable keys. Part of the GHP Series of Hotel Phones, these simple IP phones are also ideal for hospitals, apartments, dormitories, retail and more.
Grandstream GHP611 Compact Hotel Phone Features
- 2 SIP Accounts, 2 Lines
- GDMS online device management and provisioning
- 3-way audio conferencing for easy conference calls
- Includes one 100Mbps network port with PoE (GHP610 & GHP611 only)
- Speed dial label and swappable faceplate to allow for easy customization
- Hearing Aid Compatibility (HAC)
- Enterprise-level protection including secure boot, dual firmware images, and encrypted data storage
This Series also provides 3-way voice conferencing, supports full-band OPUS voice codec and features an advanced jitter-resilience algorithm that tolerates up to 30% packet loss without impacting voice quality.
Note: This model does not include WiFi. Please see the GHP610W or GHP611W for models with integrated dual-band Wi-Fi support.
Grandstream GHP611 Technical Specification
General
- Protocols/Standards: SIP: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, TLS, SRTP / Network: IPv4, IPv6, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, SSH, TFTP, NTP, STUN, LLDP, TR-069, 802.1x
- Network Interfaces One auto-negotiation 10/100 Mbps ethernet port integrated PoE Class 2
- Feature Keys
23 keys, including 3 programmable keys, 12 Standard Phone Digits keys (0-9: speed dial keys
configuration on web page, *, #), 5 Function keys (Flash, Redial, Hands-free, Voice Mail, Hold), 3
Volume Control keys, Up/Down/Mute(with red color LED)
- HD Audio One HD handset support for wide band audio
- Voice Conferencing 2 SIP accounts and lines, up to 3-way conferenc
- Voice Codecs and Capabilities
Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), G.723, iLBC, and full band
OPUS. In- band and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC,
AJB.
- Telephony Features Dial, Answer, Transfer, Conference, Redial, Flash ,Hands-free, Voice Mail (with the server) Hold/
- Advanced Features
Support for multicast paging and E911 service
Support for advanced jitter-resilience algorithm
Supports GDS Door Opening
- Wall Installation 1 Wall Mountable Base
- QoS Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
- Security
Secure boot, random default password, unique security certificate per device, administrator
level passwords, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access
control
- Multi-language English and Chinese
- Upgrade/Provisioning Firmware upgrade via FTP/TFTP / HTTP / HTTPS, fast boot in 15 seconds, mass provisioning
- Power & Green Energy Efficiency
Universal power adapter (GHP611):
Input: 100~240Vac 50~60Hz
Output: 12V/0.5A(6W)
- Temperature and Humidity
Operation: 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% (Non-condensing)
- Package Content GHP61X phone, handset with cord, base, universal power supply ( GHP611), Quick Installation Guide
- Color White (GHP611)
- Physical
211mm(L)*53mm(W)*44mm(H) (with handset)
Unit weight: 300g
Package weight: 445g
- GHP611 Compliance
FCC: Part 15 Subpart B, Class B; Part 68. 316/317.
CE: EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1.
UKCA: BS EN 55032; BS EN 55035; BS EN IEC 61000-3-2; BS EN 61000-3-3; BS EN 62368-1.
RCM: AS/NZS CISPR32; AS/NZS 62368.1; AS/CA S004, AS/CA S040.
IC: ICES-003; CS-03 Part V.
 |
