Grandstream GWN7605 802.11ac Wave-2 WiFi Access Point
|
|
28/12/2024
/grandstream-gwn7605-80211ac-wave2-wifi-access-point-p-9112.html
£54.90 exc. VAT
Availability:In stock for next day delivery
Key Features
- Dual-band 2x2:2 MU-MIMO
- Supports 100+ concurrent WiFi client devices
- Up to 165-meter coverage range
Pricing
Volume Price Discounts
| 5+ | £54.30 | | 10+ | £53.60 | | 20+ | £53.00 |
Shipping
Shipping Options
Shipping costs are calculated based on weight and destination during checkout. For next day delivery our cut off is 16:00.
Support
Product install/setup
Downloads
Documents & Manuals
SKU:GWN7605
|
|
Available Options:
- Product Details
- Specification
- Reviews
- White Papers / Case Studies
- Questions

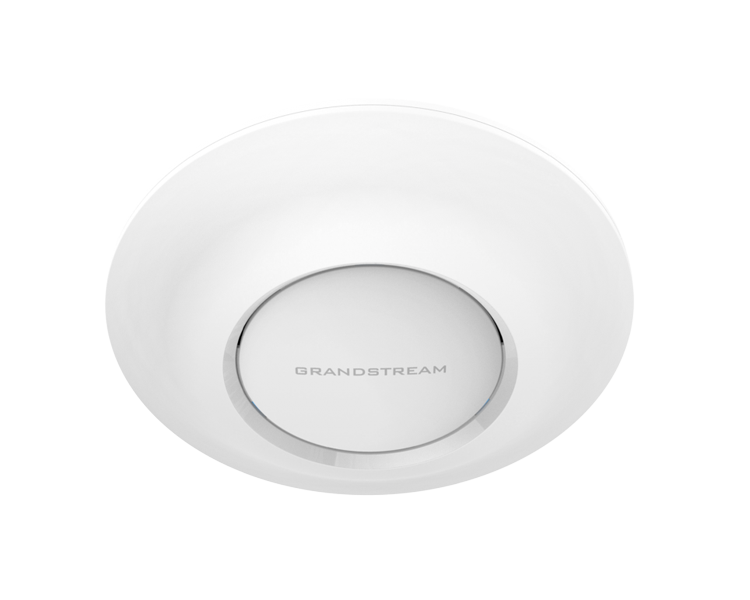

Grandstream GWN7605 802.11ac Wave-2 WiFi Access Point
The Grandstream GWN7605 is an affordable 802.11ac Wave-2 WiFi access point ideal for small to medium wireless network deployments with medium user density. It offers dual-band 2x2:2 MU-MIMO with beam-forming technology and a sophisticated antenna design for maximum network throughput and expanded WiFi coverage range. To ensure easy installation and management, the GWN7605 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface.
Grandstream GWN7605 Key Features
- 1.27Gbps aggregate wireless throughput and 2xGigabit wireline ports
- Dual-band 2x2:2 MU-MIMO with beamforming technology
- Self power adaptation upon auto detection of PoE/PoE+
- Supports 100+ concurrent Wi-Fi client devices
- Up to 165-meter coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise-based software controller
The GWN7605 is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise WiFi management platform. It is the ideal WiFi AP for voiceover-WiFi deployments and offers a seamless connection with Gra ndstream’s WiFi-capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh netw orks, captive portals, 100+ concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the GWN7605 is a scalable WiFi solution for deployments such as retail locations, restaurants, small offices and more.
Grandstream GWN7605 Technical Specification
WiFi Standards
- IEEE 802.11a/b/g/n/ac (Wave-2)
Antennas
- 2 dual band internal antennas
- 2.4GHz, gain 3dBi
- 5 GHz, gain 3dBi
WiFi Data Rates
- IEEE 802.11ac: 6.5 Mbps to 867 Mbps
- IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- IEEE 802.11n: 6.5Mbps to 300Mbps;
- IEEE 802.11b: 1, 2, 5.5, 11 Mbps
- IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands
- 2.4 GHz Radio: 2412 – 2484 MHz
- 5 GHz Radio: 5180-5825 MHz
Channel Bandwidth
- 2.4G: 20 and 40 MHz
- 5G: 20,40 and 80 MHz
WiFi and System Security
- WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO
- 2x2:2 2.4GHz (MIMO)
- 2x2:2 5GHz (MU-MIMO)
Coverage Range
- Up to 165 meters
- *coverage range can vary based on the environment
Maximum TX Power
- 2.4G:24dBm
- 5G:22dBm
- *Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity
- 2.4G: 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
- 5G: 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9
SSIDs
Concurrent clients
Network Interfaces
- 2 x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports
- 1 x Reset Pinhole, 1 x Kensington lock
Mounting
- Indoor wall or ceiling mount, kits included
LEDs
- 3 x tri-color LED for device tracking and status indication
Network Protocols
- IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
Network Management
- Embedded controller can manage up to 50 local GWN APs
- GWN.Cloud offers a free cloud management platform for unlimited GWN APs
- GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
- PoE 802.3af/ 802.3at;
- Maximum Power Consumption:10.16W
Environmental
- Operation: 0°C to 40°C
- Storage: -10°C to 60°C
- Humidity: 10% to 90% Non-condensing
Physical
- Unit Dimension: 180.4mmx180.4mmx40.8mm;
- Unit Weight: 388.2g
- Entire Package Dimension: 228.5x220x79mm;
- Entire Package Weight: 719.3g
Package Content
- GWN7605 802.11ac Wireless AP, Mounting Kits, Quick Start Guide
Compliance
 |
