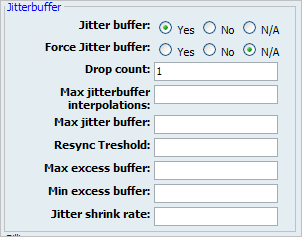

Jitter Buffer:

Turn off jitter buffer for this peer

Example: Yes, No, N/A

Field Type: Option buttons

Force Jitter Buffer:

Should we force jitter buffer (default value 10)

Example: Jitter buffer is usually handled by the UADs/Phones. But in case if these do this poorly jitter buffer can be enforced on PBXware side

Field Type: [0-9]

Drop count:

Set number of frames that can be dropped over the last 2 seconds. Set small number cause 3 = 1.5% of frames dropped

Example: 1

Field Type: [0-9]

Max. jitterbuffer interpolations:

The maximum number of interpolation frames the jitterbuffer should return in a row

Example: 1000

Field Type: [0-9]

Max. Jitter buffer:

A maximum size for the jitter buffer. Setting a reasonable maximum here will prevent the call delay from rising to silly values in extreme situations; you'll hear SOMETHING, even though it will be jittery.

Example: 1000

Field Type: [0-9]

Resync Treshold:

Resync the threshold for noticing a change in delay measured

Example: 1000

Field Type: [0-9]

Max Excess Buffer:

Maximum amount of headroom in the jitter buffer

Example: 80

Field Type: [0-9]

Min Excess Buffer:

Minimum amount of headroom in the jitter buffer

Example: 10

Field Type: [0-9]

Jitter Shrink Rate:

How many milli seconds shall be taken off per 20ms frame received

Example: 1

Field Type: [0-9]
