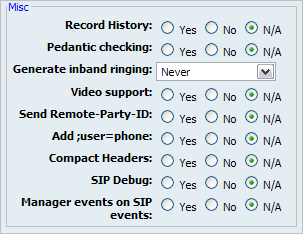

Misc |
Previous Top Next |
Record History:
Should SIP history be recorded
Example: Select 'Yes' to record SIP history. Example history information:
* SIP Call 1. TxReqRel INVITE / 102 INVITE 2. Rx SIP/2.0 / 102 INVITE /100 Trying 3. CancelDestroy 4. Rx SIP/2.0 / 102 INVITE /180 Ringing 5. CancelDestroy 6. Rx SIP/2.0 / 102 INVITE /200 OK 7. CancelDestroy 8. Unhold SIP/2.0 9. TxReq ACK / 102 ACK 10. TxReqRel INVITE / 103 INVITE 11. Rx SIP/2.0 / 103 INVITE /200 OK 12. CancelDestroy 13. Unhold SIP/2.0 14. TxReq ACK / 103 ACK
Field Type: Option buttons
|
Pedantic checking:
Enable slow, pedantic checking for Pingtel and multi-line formatted headers for strict SIP compatibility
Example: It is recommended to set this field to 'No' Field Type:Option buttons
|
Generate inband ringing:
Set whether the system generates in-bank ringing
Example: You're recommended to set this option to 'Never' Field Type: Select box
|
Video support:
Set whether the system generates in-bank ringing
Example: You're recommended to set this option to 'No' Field Type: Option buttons
|
Send Remote-Party-ID:
Should 'Remote-Party-ID' be added to uri
Example: You're recommended to set this option to 'No' unless required otherwise Field Type: Option buttons
|
Add ;user=phone:
Should ';user=phone' be added ot uri
Example: You're recommended to set this option to 'No' unless required otherwise Field Type: Option buttons
|
Compact Headers:
Should compact SIP headers be sent
Example: You're recommended to set this option to 'No' unless required otherwise Field Type: Option buttons
|
SIP Debug:
Should SIP Debug be turned on all the time
Example: You're recommended to set this option to 'No' unless required otherwise Field Type: Option buttons
|
Manager events on SIP events:
Should manager events be generated if SIP UAD/Phone performs some event (Hold for example)
Example: You're recommended to set this option to 'No' unless required otherwise Field Type: Option buttons
|
