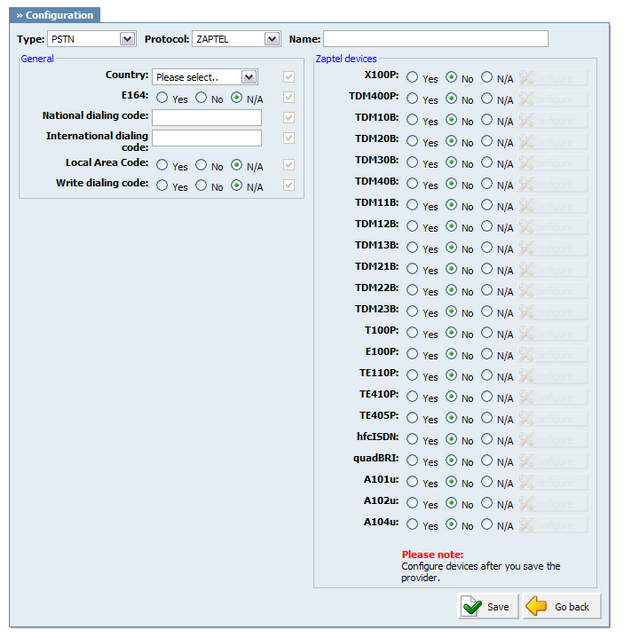

Type:

Service type

Example: pstn/voip

Field Type: Select box

Protocol:

Protocol provider uses

Example: zaptel/capi

Field Type: Select box

Provider:

Provider name

Example: BT

Field Type: [a-z][0-9]

Country:

Destination of the trunk connection

Example: USA

Field Type: Select box

E164 Accepted:

Does the Provider support dialing destinations in E164 format

Example: Enabling this option will reformat any dialled number into following form COUNTRY_CODE+AREA_CODE+DIALED_NUMBER. For example, if you dial 55510205, system will dial 121255510205

Field Type: Option buttons

National Dialing Code:

National dialing code at the Provider destination

Example: For USA 1, United Kingdom, Germany 0

Field Type: [0-9]

Leave National Code:

In some countries, national code is stripped automatically. If set to 'Yes', national code will not be stripped from the dialed number. NOTE: Before settings this option to 'Yes', go to 'Settings: Servers' and enable this options as well.

Example: John dials 121255510205. With this option enabled

Field Type: [0-9]

International Dialing Code:

International dialing code at the Provider destination

Example: For USA 011, United Kingdom, Germany 00

Field Type: [0-9]

Local Area Code:

Add local area code to dialed number, if required by service provider. (By default, local area code is stripped when dialing)

Example: User dials 55510205, local area code is 212. If call goes through this trunk PBXware will dial 21210205

Field Type: [0-9]

Write dialing code:

Should National and International prefix be written into configuration files

Example: Enable this option if required by provider

Field Type: [0-9]

Zaptel Devices:

Select zaptel device system is to use

Example:

Field Type: Option buttons

NOTE: Please configure Zaptel devices after you save the provider by clicking 'Configure' button next to a selected device.
