Servers

 Previous Top Next



PBXware system administration allows for an unlimited number of servers to be administered from a single administration interface. The system servers can in following modes:



Local: This is single system server providing services to one organization at one location just as any other PBXware.



Network: When system servers are in network mode, all servers share common dial plan. A single dial plan allows any organization to have a network of servers located anywhere in the world.

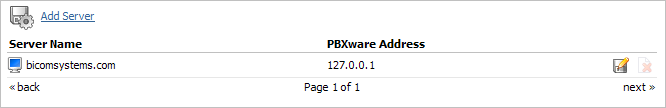

Snap0056







Server Name:

Unique, custom set, server name on the network

Example: [email protected]

Field Type: Display



PBXware Address:

System public IP address

Example: 127.0.0.1

Field Type: Display



edit

Edits the server configuration

Example: Click to edit server configuration

Field Type: Button



delete

Deletes a server from the system

Example: Click to delete a server from the system

Field Type: Button
