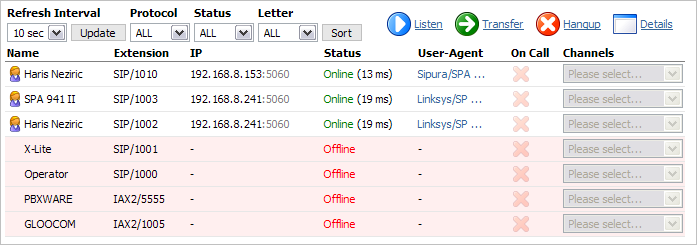

Monitored extensions are displayed in realtime with the following details:



NOTE: Certain call actions (such as transferring calls, hanging up etc...) can be performed on active calls as well





Snap0169









Name:

Name of the user extension is registered to

Example: Peter Doyle

Field Type: Display



Extension:

Protocol used by the extension/Extension network number

Example: SIP/2002

Field Type: Display



IP:

IP address:port UAD/Phone registers from

Example: 192.168.1.1:5060

Field Type: Display



Status:

UAD/Phone network status (Online/Offline) + (ping time)

Example: Online (56ms)/Offline

Field Type: Display



User Agent:

UAD/Phone Brand/Version

Example: Grandstream 101

Field Type: Display



On Call:

Is user participating in conversation at this moment

Example: yes-Yes,  no-No

Field Type: Display



Channels:

Shows the current channels available. Used with 'Listen', 'Transfer', 'Hangup' and 'Details' commands

Example: SIP/1111-1de6 (Bridged Call)

Field Type: Display
