LCR

 Previous Top Next



LCR (Least Cost Routing) section allows fine tuning the systems trunks usage accordingly to the price and quality. By default, system uses default trunks for each destination in order to present this feature as simple as possible.

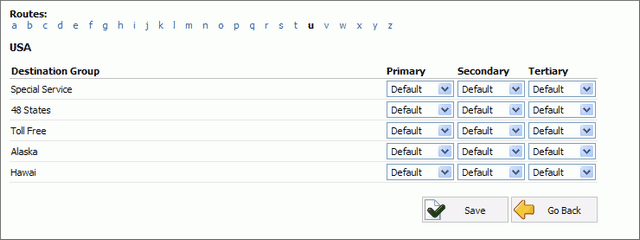

Snap0077







Routes:

Displays alphabetically all available destination routes.

Example: A, B, C, D...

Field Type: Button







Destination group:

Further description of selected route. Displays destinations by proper, mobile etc number

Example:

•Special Service
•48 States
•Toll Free
•Alaska
•Hawaii

Field Type: Display







Primary/Secondary/Tertiary Trunk:

Select trunks to be used to desired destination

Example: Voip trunk

Field Type: Select box











Precedence



Settings:

- Default Trunks: All System calls go through trunks defined here

. MiniLCR: Overrides 'Default Trunks' and sets a specific trunk for a destination



Extensions:

- Trunks: Overrides 'Settings: Default Trunks'

- Routes: Overrides 'Settings: MiniLCR'
