Lookup

 Previous Top Next

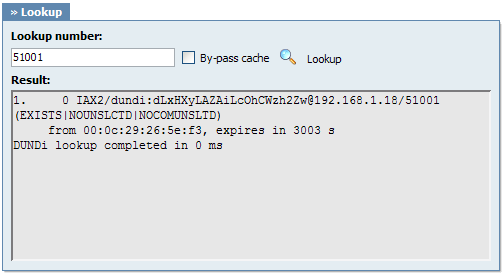

DUNDi lookup feature determines if a number can be reached via the service. Additional information is displayed commenting what is actually happening with the call





Snap132





Lookup number:



Provide a fool lookup number here



Example: $NETWORKPREFIX + $NETWORK NUMBER (e.g. 51001. 5=Network prefix and 1001 is local extension)

Field Type: [0-9]











Snap0142







By-pass cache:



By-pass cache when performing lookup



Example: It is recommended to keep this option checked

Field Type: Option button







Lookup



Select this button to perform the lookup. The result will be displayed in new window below



Example: Provide the lookup number, by-pass the cache and click this button to perform a lookup

Field Type: Button
