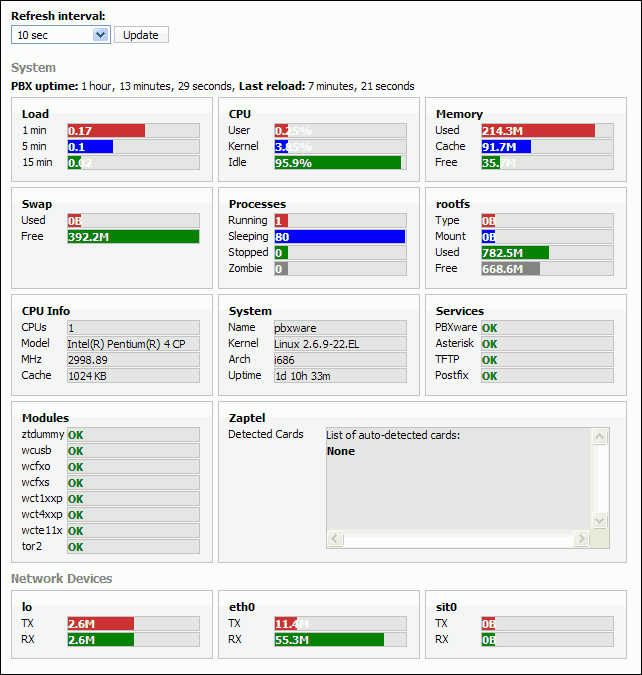

Refresh Interval:

Time interval in seconds at which data is to be refreshed

Example: 10 sec

Field Type: Select box

PBXware Uptime:

Total time PBXware is available for service

Example: 1 hour, 16 minutes, 42 seconds

Field Type: Display

Last Reload:

Total time since PBXware was last reloaded

Example: 10 minutes, 34 seconds

Field Type: Display

Load:

Load shown for past 1, 5 and 15 minutes

Example: 0.16

Field Type: Display

CPU:

CPU usage by: user, kernel and idle

Example: 2.3%

Field Type: Display

Memory:

Memory usage by: Used, Cache and Free

Example: 299.1M

Field Type: Display

Swap:

Swap space usage

Example: 5.2M

Field Type: Display

Processes:

Processes by Running, Sleeping, Stopped and Zombie

Example: 1, 96, 0, 0

Field Type: Display

rootfs:

File systems present shows by type, mount, usage and free status

Example: 0B, 0B, 3.3G, 1.5G

Field Type: Display

CPU Info:

Number of CPU's, Model, Speed and Cache size

Example: Pentiun II (Deschutes), 398.28, 512KB

Field Type: Display

System:

General system details like Name, Kernel, Architecture and Uptime

Example: zenica.bicomsystems.com, Linux 2.4.21-27.0.1.EL, i686, 18d 1h 35m

Field Type: Display

Services:

Default system services running on the system

Example: PBXware, Asterisk, TFTP, Postfix

Field Type: Display

Modules:

Currently loaded ZAPTEL modules

Example: wsusb

Field Type: Display

Zaptel:

A list of all cards detected by the system is displayed here.

Channel Map displays used slots on TDM card. In this case first slot is filled with FXO module (displayed in black) while other 'Empty' slots are displayed in gray color.

Example: Channel Map: 1: FXO, 2:FXS, 3:Empty, 4:FXO

Field Type: Display

NOTE: With TDM cards, please make sure your power cable is connected. Message 'PLEASE CHECK TDM POWER CABLE' will be displayed if this happens.
