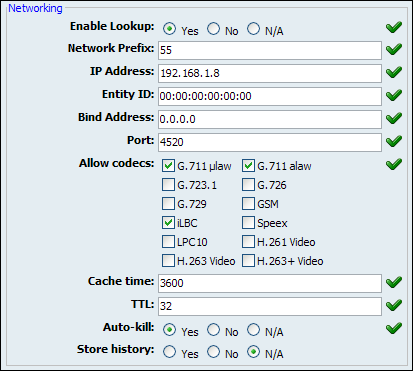

Enable lookup:

Enable peer lookup for this server

Example: Setting this option to 'Yes' will allow other peers to find information about this server. It is recommended to keep this option set to 'Yes'

Field Type: Option buttons

Network Prefix:

Prefix number assigned to the server

Example: This number is similar to Area Code. It has to be dialed by other peers in order to access extensions on our side. Setting this option to '6' means that other peers will dial 6+1000 to dial extension 1000 on our server

Field Type: [0-9]

IP Address:

PBXware IP address other peers will connect to

Example: If PBXware is located on public IP address 89.223.12.93, type that IP here

Field Type: [0-9]

Entity ID:

PBXware MAC address. If PBXware has more then one MAC address, provide one of the first eth device

Example: 00:07:E9:3B:76:60

Field Type: [a-z][0-9]

Bind Address:

Set the Bind Address allowed to connect to our peer

Example: To allow all IP addresses to connect to us, set '0.0.0.0', or 192.168.1.20 to allow access from this IP address only

Field Type: [0-9]

Port:

Port through which other peers will connect to our server

Example: Default Bind Address Port is '4520'

Field Type: [0-9]

Codecs:

Codecs are allowed to other peers when connecting to our PBXware. See 'Codec Bandwidth' below for more

Example: It is recommended that you check the boxes next to ulaw, alaw, g719, gsm and ilbs codecs

Field Type: [0-9]

Cache:

Time in seconds during which peers will cache our query responses

Example: Default value '3600'

Field Type: [0-9]

TTL:

Time in milliseconds system will wait for the response

Example: Default value '32'

Field Type: [0-9]

Auto-kill:

Cancels the connection if there is no response within 2 seconds

Example: It is recommended that you keep this option set to 'Yes'

Field Type: Option buttons

Store history:

Should PBXware keep track of the last several queries and their execution time

Example: Set to 'Yes' only when debugging for it impacts the performance. Default value 'No'

Field Type: Option buttons
