Routes |
Previous Top Next |
This window identifies all destinations by dialled numbers. All numbers provided here are in E164 format. Destinations that do not exist in this database cannot be dialed by the PBXware.
Update daemon database:
Updates daemon database with imported data
Example: Click to update Field Type: Button
|
Import Database:
Imports current data from the central destination database
Example: Click to import Field Type: Button
NOTE: Import and update operations need to be performed at regular maintenance times. In addition, any destination is not accessible the network administrator should be notified.
|
Export database:
Export daemon database with newly added details
Example: Click to export Field Type: Button
|

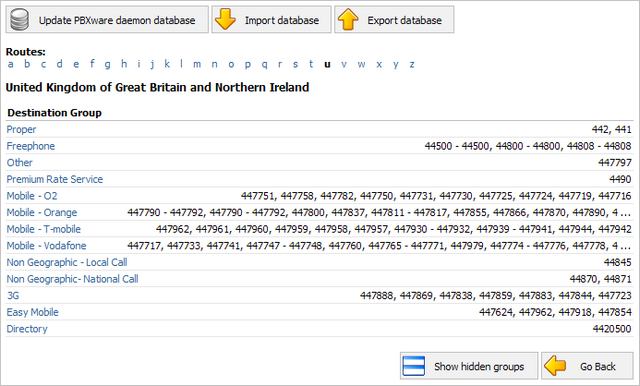

Routes:
Displays alphabetically all available destination routes.
Example: A, B, C, D... Field Type: Button
|
Destination group:
Further description of selected route. Displays destinations by proper, mobile etc number
Example:
Field Type: Display
|
Show Hidden Groups:
Show hidden route groups
Example: Click on this button to display all available groups Field Type: Button
|

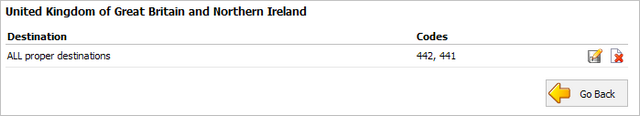

In order to view destination numbers for United Kingdom, click on 'u' letter under 'Routes' navigation. All United Kingdom destination groups will be displayed. Click on one (e.g. Proper) to view all destination numbers assign to it.
