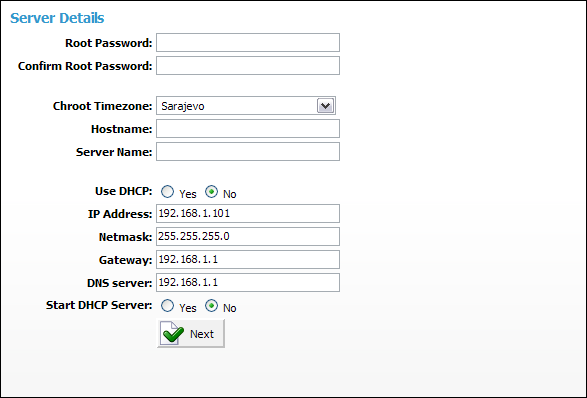

Root Password:

Set the root password

Example: PBXware prompts for this password during the system/ssh login and when accessing system services  throughinterface

Field Type: [a-z][0-9]

Confirm Password:

Confirm the root password

Example: Re-type the Root Password entered in the field above

Field Type: [a-z][0-9]

Chroot Time zone:

Time zone PBXware is located at

Example: Select the appropriate time zone, for example 'USA/East-coast

Field Type: Select box

Hostname:

The name given to machine which will identify the system on the network

Example: myhost

Field Type: [a-z][0-9]

Server name:

Virtually same as the 'Hostname' field, only this name will appear during system notifications, sent emails etc.

Example: domain.com

Field Type: [a-z][0-9]

Use DHCP:

Is PBXware using DHCP or static IP address

Example: It is recommended to always set PBXware on static IP address (Set this option to 'No')

Field Type: Option buttons

IP Address:

Static PBXware IP address

Example: If PBXware is in the LAN provide its static IP address here

Field Type: [0-9]

Netmask:

IP address netmask

Example: This field is calculated automatically

Field Type: [0-9]

Gateway:

IF PBXware is located in LAN, set the gateway IP address here

Example: 192.168.1.1

Field Type: [0-9]

DNS server:

If PBXware is located in LAN, set the preferred DNS server IP address here

Example: 192.168.1.1

Field Type: [0-9]

Start DHCP Server:

Should PBXware start its own DHCP server

Example: If there is no DHCP server on LAN, PBXware can start its own and provide UADs/Phones with this service

Field Type: [0-9]
