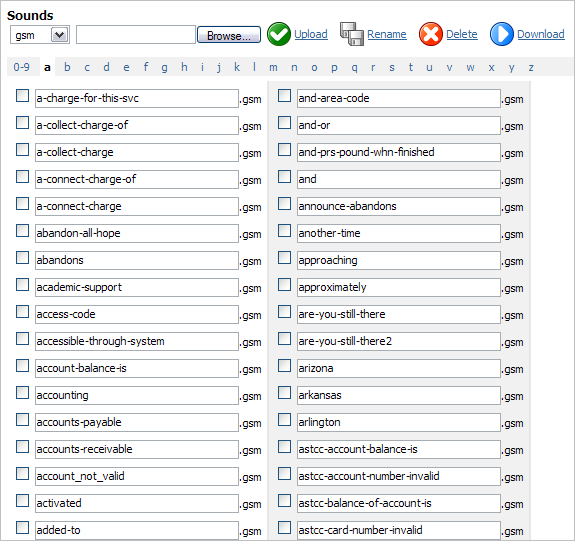

Sounds:

Select among available options (gsm, ulaw, alaw, g729, ilbc, sln) to display system sound files of that type

Example: Selecting 'gsm' will display all system sounds with the .gsm file type

Field Type: Select box

Upload:

Uploads selected file from local computer to PBXware

Example: Click 'Browse' button and select a file from your desktop. Then click this button to upload selected file to PBXware

Field Type: Command button

Rename:

Renames selected sound file

Example: Select a box next to a sound file (e.g. arizona). Change 'arizona' into 'Arizona101' and click this button to rename selected sound file

Field Type: Command button

Delete:

Deletes selected sound file

Example: Select a box next to a sound file (e.g. arizona) and click this button to delete selected sound file

Field Type: Command button

Download:

Downloads selected sound file to user's desktop

Example: Select a box next to a sound file (e.g. arizona) and click this button to download selected file to your desktop

Field Type: Command button

NOTE:

PBXware will play only sound file types equal to enabled codecs on dialing extension.

For example, Extension 1000 has only gsm codec enabled. When same Extension logs in as a Queue Agent by dialing '*202 + $AGENT_NUMBER', all sounds played by PBXware (asking for password etc...) will be in '.gsm' format.

If multiple codecs are enabled for Extension 1000(ulaw,alaw,gsm), PBXware will play sound files with better sound quality (ulaw/alaw).
