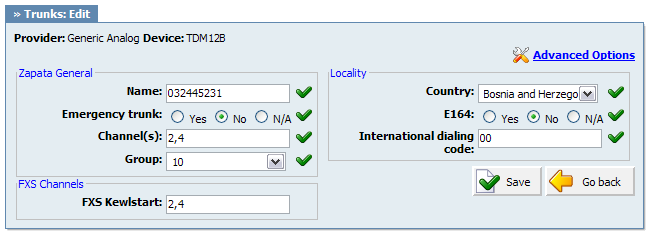

Name:

Trunk name/number

Example: 032445231 for example

Field Type: [a-z][0-9]

Emergency trunk:

Should emergency services (Police, Ambulance etc) be called over this trunk

Example: Select 'Yes' in order to dial emergency services over this trunk

Field Type: Option buttons

Channels

Which card channels are used

Example: If channel 2 and 4 are used on your card, set '2,4' here. If all four channels are used set '1-4' here

Field Type: [0-9], [,-]

Group

Every ZAPTEL trunk has to belong to a group. Selecting any group will enable the trunk

Example: With most of the cards this option is auto detected and set. If that is the case with your card - do not change this field

Field Type: Select box

FXS Kewlstarts:

Signaling protocol for analog circuits that better detects far-end disconnects

Example: Select card channels to be monitored with it. For example '1,4' or '1-4'. These numbers should match the 'Channel(s)' field

Field Type: [0-9], [,-]

Country:

Destination of the trunk connection

Example: If your system is located in USA, select USA here

Field Type: Select box

E164 Accepted:

Does the trunk support dialing destinations in E164 format

Example: Enabling this option will reformat any dialled number into following form COUNTRY_CODE+AREA_CODE+DIALED_NUMBER. For example, if you dial 55510205, system will dial 121255510205

Field Type: Option buttons

International Dialing Code:

International dialing code at the trunk destination

Example: For USA 011, United Kingdom, Germany 00

Field Type: [0-9]
