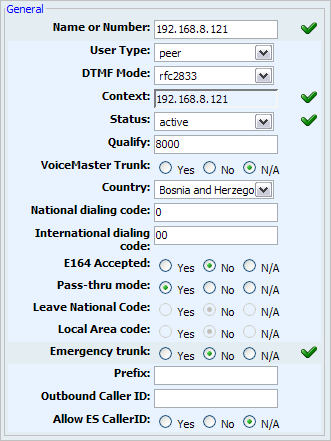

These options are used frequently and required for normal trunk operation. Some of these fields are pre-configured with the default values. It is not recommended to change them.
User Type:
User's relationship to the system
Example:
Field Type: Select box
|
DTMF Mode (Dual Tone Multi-Frequency):
Trunk DTMF mode. A specific frequency (consisting of two separate tones) to each key so that it can easily be identified by a microprocessor
Example:
Field Type: Select box
|
Context:
Contexts define a scope within the PBXware. Trunk context cannot be modified and is same as the trunk name or number
Example: 2554433 Field Type: [a-z][0-9]
|
Status:
Set trunk status on the system
Example: Rather then deleting the trunk you can disable it on system level by selecting 'Not Activated' here Field Type: Select box
|
Qualify:
Timing interval in milliseconds at which a 'ping' is sent to a host in order to find out its status
Example: Set this field to 2000 for example. If more time then provided here is needed to reach the host, host is considered offline Field Type: [0-9]
|
VoiceMaster Trunk:
Set whether this trunk leads to VoiceMaster gateway
Example: If you have a VoiceMaster gateway and are creating this trunk to connect it with this system, select 'Yes' here Field Type: Option buttons
|
Country:
Country where service provider resides
Example: Select USA for example if provider is from United States Field Type: Select box
|
National Dialing Code:
National dialing code used at the trunk destination
Example: For USA 1, United Kingdom, Germany 0 Field Type: [0-9]
|
International Dialing Code:
International dialing code used at the trunk destination
Example: For USA 011, United Kingdom, Germany 00 Field Type: [0-9]
|
E164 Accepted:
Does the trunk support dialing destinations in E164 format
Example: Enabling this option will reformat any dialled number into following form COUNTRY_CODE + AREA_CODE + DIALED_NUMBER. For example, if you dial 55510205, system will dial 121255510205 Field Type: Option buttons
|
Pass-thru mode:
Pass the digits dialed without any conversion (E164, National, Area code). NOTE: When active, 'Leave National Code and 'Local Area Code' will be disabled
Example: If this option is disabled PBXware will convert all dialed numbers to E164 format (COUNTRY_CODE + AREA_CODE + DIALED_NUMBER) and then make a call to converted number. If this option is enabled, PBXware will call directly DIALED_NUMBER without making any number conversions Field Type: Option buttons
|
Leave National Code:
In some countries, national code is stripped automatically. If set to 'Yes', national code will not be stripped from the dialed number. NOTE: Before settings this option to 'Yes', go to 'Settings: Servers' and enable this options as well.
Example: John dials 121255510205. With this option enabled Field Type: [0-9]
|
Local Area Code:
Add local area code to dialed number, if required by service provider. (By default, local area code is stripped when dialing)
Example: User dials 55510205, local area code is 212. If call goes through this trunk PBXware will dial 21210205 Field Type: [0-9]
|
Prefix:
Value added to all dialed numbers going over the trunk
Example: Prefix 5, Dialed number 123, System dials 5123 Field Type: [0-9]
|
Outbound Caller ID:
If Caller ID is not set by UAD, value provided here will be used instead for all outgoing calls
Example: 55599999 Field Type: [0-9]
|
Allow ES Caller ID:
Should ES (Enhanced Services) caller id be allowed over this trunk
Example: Any extension can set custom caller id for each system trunk. With this option enabled, that caller id will be used instead of the trunk outbound caller id Field Type: [0-9]
|
