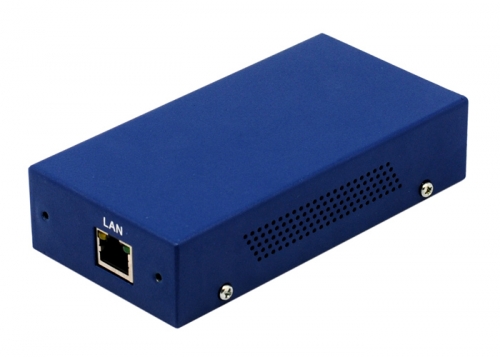

Openvox V100-BOX Up to 256 transcoding Sessions, Enclosure V100-BOX-256

The Openvox V100-BOX-256 is an integrated box designed to streamline installation,With an extern Power Supply, it can work alone by using Ethernet port and also being stacked up to 5 instances on a 19 inch rack mount.The V100-BOX from Openvox can be worked with Asterisk® and FreeSWITCH®.

Feature

• High density up to 256 transcoding Sessions
• No addionnal License Fee１
• Relieve Host CPU Load
• Release API for Integration
• OS : Linux and Windows
• Integrates in Asterisk® and FreeSWITCH®
• Support distributed or intergrated Application

Openvox V100-BOX-256 - Technical Specifications

Codec Support

• G.711	• GSM-FR
• G.722	• GSM-EFR
• G.722.1	• AMR
• G.726	• AMR-WB (G.722.2)
• G.729AB	• iLBC

* Except for AMR and AMR-WB

Target Applications

• Hosted VoIP GateWay
• Conferencing Server
• IVR Server
• Distributed Office PBX
• Call Centers

Dimensions

• 131x67.5x31mm

Interface

• 10/100/1000 BASE-T RJ45

Power Requirments

• 0.6A @12V

Operating Temperature Range

• 0 – 50 °C

Humidity

• 10 TO 90% NON-CONDENSING

Hardware And Software Requirement

• Windows/Linux in Host

Certifications

• FCC Part 15B，EN55022 Class B，EN55024 EN60950 (Pending)

Warranty

• 5-year warranty

Related Accessories

The OpenVox V100-Bracket is a 1U & 19” bracket, designed for rackmounting installation of up to 5 instances of V100-BOX.
