Package includes

• G7500 codec
• EagleEye IV camera or EagleEye Cube USB
• Poly IP Microphone
• Bluetooth Remote control
• Cable bundle

Video Standards and protocols

• H.264 AVC, H.264 High Profile, H.264 SVC, H.265, RTV
• H.239
• H.264 video error concealment

Video Input

• 1 x HDC
• 1 x HDMI
• 1 x USB

Video Out

• 2x HDMI
• Touch Display Compatible

People Video Resolution

• 4K, 30 fps (TX & RX) from 2048 Kbps
• 1080p, 60 fps from 1740 Kbps
• 1080p, 30 fps from 1024 Kbps
• 720p, 60 fps from 832 Kbps
• 720p, 30 fps from 512 Kbps
• 4SIF/4CIF, 60 fps from 512 Kbps
• 4SIF/4CIF, 30 fps from 128 Kbps
• SIF (352 x 240), CIF (352 x 288)
• from 64 kbps
• QCIF (176 x 144) from 64 kbps
• w288p from 128 Kbps
• w448 from 384 Kbps
• w576p from 512 Kbps

Content Video Resolution

• Input
  • UHD (3840x2160)
  • HD (1920 x 1080p)
  • WSXGA+ (1680 x 1050)
  • UXGA (1600 x 1200)
  • SXGA (1280 x 1024)
  • WXGA (1280 x 768)
  • HD (1280 x720p)
  • XGA (1024 x 768)
  • SVGA (800 x 600)
• Output
  • UHD (3840 x 2160)
  • WUXGA (1920 x 1200)
  • HD (1920 x 1080)
  • WSXGA+ (1680 x 1050)
  • SXGA+ (1400 x 1050)
  • SXGA (1280 x 1024)
  • HD (1280 x 720)
  • XGA (1024 x 768)
• Content frame rate
  • 5–60 fps (up to 4K resolution at 15 fps in call)

Content sharing

• Polycom Content App support
• Apple AirPlay
• Miracast
• 1 x HDMI input

Audio Input

• Up to 3 1x IP Microphone Arrays
• Up to 4x Clink2 Microphones or SoundStructure (using Poly Microphone IP Adapter)
• 1 x HDMI
• 1 x 3.5 mm stereo line-in

Other interfaces

• 3x USB 3.0
• 1x USB-C
• 1x RS-232, 8-pin mini-DIN
• Bluetooth 5.0
• WiFi 802.11a/b/g/n/ac (MIMO) Multichannel Concurrency

Audio Standards and protocols

• 22 kHz bandwidth with Polycom Siren 22 technology, G.719 (M- Mode)
• 14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C
• 7 kHz bandwidth with G.722, G.722.1
• 3.4 kHz bandwidth with G.711, G.728, G.729A

Network

• IPv4 support
• 1 x 10/100/1G Ethernet
• Auto-MDIX
• 3x 10/100/1G LLN supporting POE+/PSE
• H.323 and/or SIP up to 6Mbps
• Polycom Lost Packet Recovery (LPR) technology
• Dynamic Bandwidth Allocation
• Reconfigurable MTU size
• RS232 with REST & CLI API support
• Web Proxy support—Basic, Digest and NTLM
• Simple Certificate Enrollment Protocol (SCEP)

Security

• Media Encryption (H.323, SIP): AES-128, AES-256
• H.235.6 support
• Authenticated access to admin menus, web interface and APIs
• PKI/Certificate Management:
  • TLS 1.2, 1.1, 1.0
  • Self-signed and CA-signed certificate support
  • CRL and OCSP-based certificate revocation checking
• Local account password policy configuration
• Security profiles
• Local account and login port lockout
• Secure defaults
• Remote logging with support for TLS
• Active Directory external authentication

Options

• Poly IP Ceiling Microphone
• Poly IP Table Microphone
• Poly Microphone IP Adapter
• EagleEye Cube USB
• EagleEye Director II
• EagleEye Producer

Interoperability

• Zoom Meetings
• BlueJeans Video Conferencing

Electrical

• Auto sensing power supply
• Typical operating voltage/power
  • 37VA @ 120V @ 60 Hz
  • 37VA @ 230V @ 50/60 Hz
• Typical BTU/h: 65

Environmental

• Operating temperature: 0 to 40 °C
• Operating humidity: 15 to 80%
• Non-operating temperature: -40 to 70 °C
• Non-operating humidity (non-condensing): 5 to 95%
• Maximum altitude: 10,000 ft

Physical Characteristics

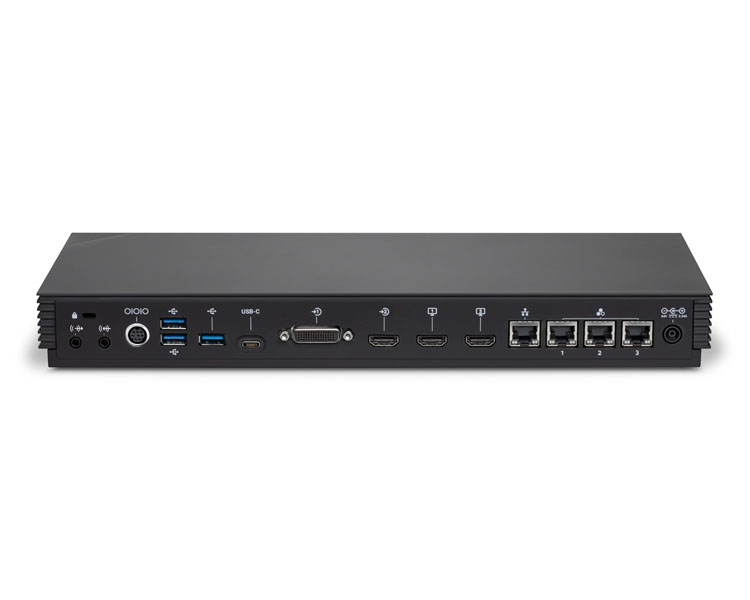

• G7500 base box
  • 13.75” L x 1.5” H x 5.5” D
  • 2.1 lbs

Warranty

• One-year return to factory parts and labor
