User Interface Features

• 2.5” graphical backlit monochrome LCD (132x64 pixel resolution)
• Voicemail support
• Reversible deskstand/wallmount
• Unicode UTF-8 character support
• Multilingual user interface

Feature keys

• 4 context-sensitive “soft” keys
• 2 line keys with bi-color (red/green) LED “Home” feature key
• 4-way navigation key cluster with center “Select” key
• 2 volume control keys
• Dedicated keys:
  - Back and Home
  - Hold and Transfer
  - Headset
  - Hands-free speakerphone
  - Microphone Mute

Audio features

• Polycom® Acoustic Clarity™ technology providing full-duplex conversations, acoustic echo cancellation and background noise suppression
• TIA-920 Wideband Audio
• Type 1 compliant (IEEE 1329 full duplex)
• Frequency response—150 Hz—7 kHz for hands-free speakerphone, handset and optional headset mode
• Codecs: G.711 (A-law and μ-law), G.729AB, G.722 (HD Voice), iLBC
• Individual volume settings with visual feedback for each audio path
• Voice activity detection
• Comfort noise generation
• DTMF tone generation (RFC 2833 and in-band)
• Low-delay audio packet transmission
• Adaptive jitter buffers
• Packet loss concealment Headset and handset compatibility
• Dedicated RJ-9 headset port
• Hearing aid compatibility to ITU-T P.370 and TIA 504A standards
• Compliant with ADA Section 508 Subpart B 1194.23 (all)
• Hearing aid compatible (HAC) handset for magnetic coupling to hearing aids
• Compatible with commercially-available TTY adapter equipment

Call Handling Features

• 2 SIP identity (registration)/2 programmable line keys
• Shared call/bridged line appearance
• Flexible line appearance (one or two line keys can be assigned for each registration)
• Distinctive incoming call treatment/call waiting
• Call timer and call waiting
• Call transfer, hold, divert (forward), pickup
• Called, calling, connected party information
• Local three-way audio conferencing
• One-touch speed dial, redial
• Remote missed call notification
• Do not disturb function
• Electronic hook switch capable
• Local configurable digit map/dial plan

Open Application Platform

• Supports Polycom Apps SDK and API for third- party business and personal applications
• Bundled with Polycom UC Software:
  - Corporate Directory Access using LDAP
  - Visual Conference Management

Network and Provisioning

• SIP Protocol Support
• SDP
• IETF SIP (RFC 3261 and companion RFCs)
• Two-port Ethernet switch 10/100Base-TX across LAN and PC Ports
• Manual or dynamic host configuration protocol (DHCP) network setup
• Time and date synchronisation using SNTP
• FTP/FTPS/TFTP/HTTP/HTTPS server based central provisioning for mass deployments
• Provisioning and call server redundancy supported
• QoS Support–IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS, and DHCP
• VLAN—CDP, DHCP VLAN discovery, LLDP-MED for VLAN discovery
• Network Address Translation (NAT)— support for static configuration and
• “Keep-Alive” SIP signaling
• RTCP and RTP support
• Event logging
• Syslog
• Hardware diagnostics
• Status and statistics reporting
• TCP
• UDP
• DNS-SRV
• IPv4 and IPv6

Security

• 802.1X Authentication and EAPOL Media encryption via SRTP
• Transport Layer Security (TLS)
• Encrypted configuration files
• Digest authentication
• Password login
• Support for URL syntax with password for boot server address
• HTTPS secure provisioning
• Support for signed software executables

Power

• Built-in auto sensing IEEE 802.3af Power over Ethernet Class 2, 5.0 W (Max)
• External Universal AC/DC Adapter (optional) 5VDC @ 3A (15W)
• ENERGY STAR® rated

Approvals

• FCC Part 15 (CFR 47) Class B
• ICES-003 Class B
• EN55032 Class B
• CISPR32 Class B
• VCCI Class B
• EN55024
• EN61000-3-2; EN61000-3-3
• NZ Telepermit
• Korea KCC3
• UAE TRA
• Russia CU3
• Brazil ANATEL3
• Australia RCM
• South Africa ICASA3
• Saudi Arabia CITC
• China CCC3
• RoHS Compliant

Safety

• UL 60950-1/62368-1
• CE Mark
• CAN/CSA C22.2 No 60950-1/62368-1-1
• EN 60950-1/62368-1
• IEC 60950-1/62368-1
• AS/NZS 60950-1

Operating Conditions

• Temperature: 0 to 40°C (+32 to 104°F)
• Relative humidity: 5% to 95%, noncondensing

Storage Temperature

• -40 to +70° C (-40 to +160° F)

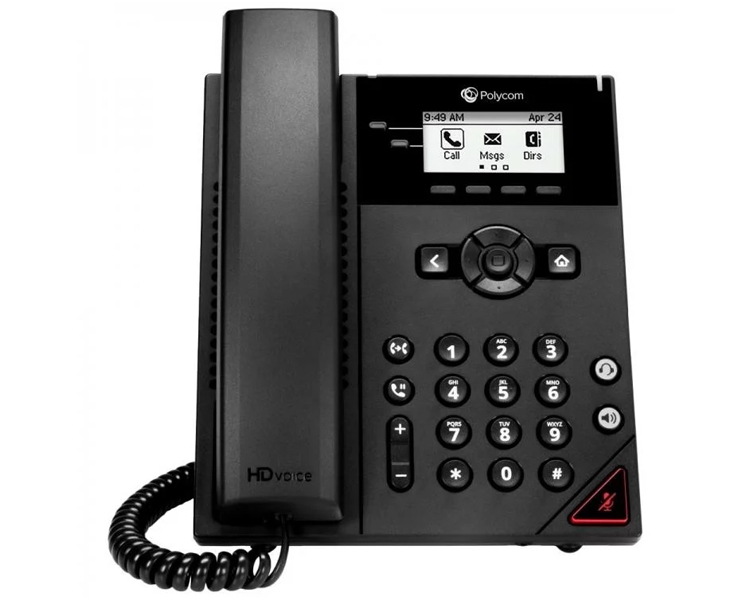

Polycom® VVX® 150 comes with

• Console
• Handset with handset cord
• Network (LAN) cable—CAT-5E
• Desk Stand/Wall Mount Bracket
• Setup Sheet

Size

• 24cm x 23cm x 5.7cm WxHxD (9.5in x 10in x 2.2in WxHxD)

Weight

• Carton weight: 0.890kg (1.962lbs)

Warranty

• One (1) year
