Availability: In Stock

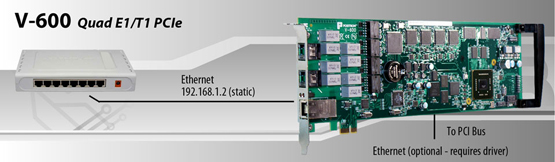

Positron V-600 Quad E1 T1 PCI Express Card

High density enterprise communication solution for voice, fax and video

The V-600 from Positron Telecom is a powerful and flexible enterprise solution capable of supporting a full function PBX, T.30 fax termination on all ports, T.38 fax termination, voice and video trans-coding – all on a single board solution. The V-600 installs simply and quickly into your system as an Ethernet adapter and will accept SIP traffic without the need for application development or additional software – just configure and go.


Technical Specifications

• PCIe (1x)
• Four E1/T1 PRI ports
• Dedicated hardware echo cancellers per E1/T1
• Powerful on board CPU @ 1.3Ghz
• On board multicore DSP for media processing (15 cores)
• SATA 2.0 controller
• 10/100/1000 Mbps Ethernet for PCI and RJ-45

Highlights

• Installs as Ethernet adapter – just send SIP traffic, no development required
• No CPU load on Host system
• No Host driver required
• Installs in ANY operating system
• Ideal for Hosted VMWARE environments
• Integrated PBX)
• Unlimited boards per Host system
• Cross Board Switching

Applications

Voice Transcoding Gateway 900 G.729 to G.711 simultaneous

• Adaptive Multi Rate (AMR)
• AMR-WB (G.722.2)
• Enhanced Full Rate (GSM-EFR)
• G 711
• G.723.1
• G.726
• G.729AB
• G.729.1
• G.722.1
• iLBC
• Speex

Video Transcoding Gateway

• Video Support
  - H.263
• CIF/QCIF
  - MPEG-4 Part-2
• CIF/QCIF
  - H.264 encoder (demo purposes)
  - Transcoding - Resizing
  - Frame rate adaptation
  - Bit-rate adaptation
• Video Effects
• Video mixer
• Text overlay
• Graphic Overlay

IP PBX with integrated Echo Cancelling and telephony ports

• Tone Detection / Generation
• Tone Relay
• Caller ID Detection / Generation
• Conferencing
• V.152
• SIP to TDM Gateway
• SRTP

Fax Server

• 200 T.38 Sessions over UDP or RTP
• 120 T.30 simultaneous faxs (V.17 at 14.4Kbps)

Audio Conferencing Server

• Adaptive Noise Reduction
• Automatic Level Control
• High Level Compensation
• Natural Level Enhancement

PBX Functionality

Extensions

• IP Phone / ATA extensions
• Virtual Extensions
• IVRs
• Extension Templates
• Control permissions for each extension
• 3,4,5 digit extensions

Mobility Features

• Find me / Follow me
• Voice / Fax / Email to inbox
• Corporate callback
• Caller ID on call forward

Calling Methods

• VoIP
• T1/E1 Phone Lines
• Connecting Multiple PCI cards

Call Control

• Hold
• Assisted Transfer
• Blind Transfer
• Call Parking
• Do Not Disturb
• Send Calls
• Call forwarding rules
• Direct Inward dial (DID)
• Call Waiting
• Called ID
• Call Parking
• Call retrieve / pickup

Call Control

• Hold
• Assisted Transfer
• Blind Transfer
• Call Parking
• Do Not Disturb
• Send Calls
• Call forwarding rules
• Direct Inward dial (DID)
• Call Waiting
• Called ID
• Call Parking
• Call retrieve / pickup

Conferencing

• Simple Conference Room
• Meet Me Conference Center
• Three way conference

Music On Hold

• Custom Music on Hold
• Music on Hold included

Recording & Monitoring
Call Recording

Logging & Reporting

• Current Calls
• Call Logs
• Call Reporting

Auto attendant

• Dial By Extension Directory
• Dial By Name Directory

More Features

• Advanced Diagnostics
• Least cost routing
• Failover between PSTN and VoIP
• Auto phone provisioning
• Status page monitor
• Desktop paging (needs phone support)
• Multilingual support
