Spectralink PIVOT:S 8742 EU Black Handset Only

0 Based on 0 ratings.
Write a Review

Key Features
  • Android operating system
  • Durable handset combined/smartphone usability
  • Built with VQO that delivers superior voice quality

Pricing Volume Price Discounts

No volume pricing discounts available

Shipping Shipping Options

Shipping costs are calculated based on weight and destination during checkout. For next day delivery our cut off is 16:00.

Support Product install/setup

Want help installing this product? Add premium support to your order.

Downloads Documents & Manuals

SKU:PBK87425
Brand:
Available Options:
Available Product Options:
Spectralink Desktop Charger for PIVOT:
Spectralink PIVOT USB PSU for charger:
Spectralink PIVOT standard battery:
  • Product Details
  • Reviews
  • White Papers / Case Studies
Please Note: This product is end of life. For an alternative, please see the other Spectralink phones.

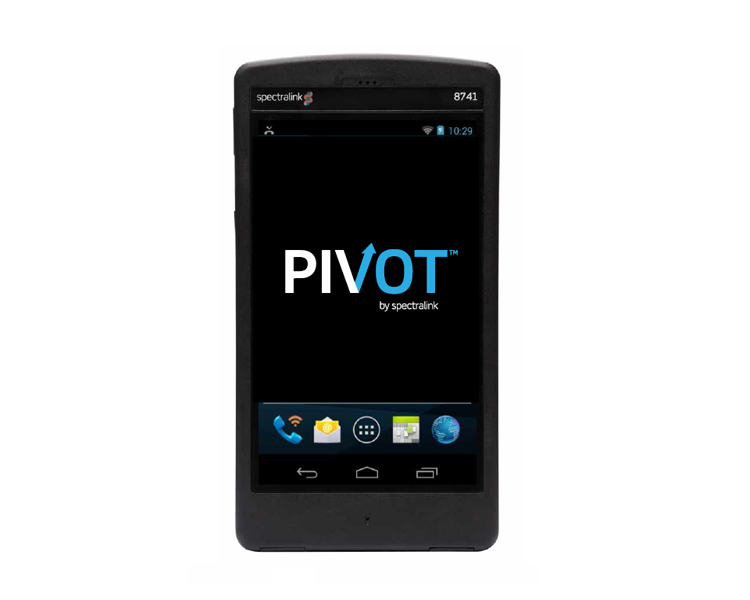

Spectralink PIVOT:S 8742 EU Black Handset Only

The Spectralink PIVOT 8742 Android Handset expands the Spectralink 8000 Portfolio of Voice over Wi-Fi handsets to deliver enterprise grade, on-site voice mobility with a user-friendly interface presented on an extensible application platform.

Spectralink PIVOT:S 8742 Key Features

  • Spectralink’s high performance audio and voice over WLAN implementation
  • Enterprise SIP and WLAN features
  • Android-based home page, user interface, settings utility,a pplications
  • Highly customisable platform via optional feature licenses
  • Large, optically bonded, damage-resistant glass touchscreen
  • Multi-touch pan, zoom, swipe-gesture navigation
  • Dedicated hard buttons for emergency dial (red button), scanning and Push-to-Talk (PTT)1
  • Chemical resistance to commonly used cleaning solutions
  • Secure Over-the-Air (OTA) provisioning and management

Based on the industry standard Android operating system, the PIVOT is a WorkSmart solution - differentiated by its intuitive touchscreen design, HD voice quality, seamless Voice over Wi-Fi roaming without dropouts, durability, broad telephony and WLAN interoperability, and predictable return on investment.

PIVOT further enhances the customer value proposition with two enhanced standards-based application interfaces, an optional, high-performance integrated barcode scanner and an industrial-grade accelerometer. In partnership with the Spectralink applications development ecosystem, PIVOT enables new opportunities for end-user productivity solutions.

Spectralink PIVOT 8742 - Technical Specifications

Processor and Memory

  • ARM Cortex-A9 dual core, 1 GHz processor
  • 1 GB DRAM, 8 GB flash

Operating System

  • Android JellyBean 4.1.2
  • Protected from jail-breaking and rooting

Display and Touchscreen

  • 109 mm (4.3 in.) TFT, 800 x 480 pixels
  • 16 million colour palette
  • Multi-touch capacitive touch screen display
  • Accelerometer-based automatic screen orientation
  • Manual or automatic adjustable display brightness
  • Backlit display with adjustable time out
  • Selectable wallpaper/background

Dedicated Physical Buttons

  • Push-to-Talk1
  • Power
  • Volume control
  • Barcode reader scan activation (PIVOT 8753 handset only)
  • Panic/Duress1

Peripheral Features

  • Micro USB interface for wall charging and configuration
  • 3.5 mm four-conductor stereo headset connector
  • Bluetooth1

Battery

  • Easy-access 2000 mAh battery pack
  • Up to eight hours talk time
  • Standby time designed to support full shifts

Durability

  • Drop/shock: MIL STD 810G, method 516.6 procedure IV
  • Ingress protection standard: IP-64 per IEC 60529
  • Damage-resistant Dragontrail™ glass

Dimensions and Weight

  • Dimensions
    144.6 x 77.2 x 27.3 mm
    (5.7 x 3 x 1.1 in.)
  • Weight 240 gr. (8.5 oz)

Wireless Networking, Wi-Fi

  • 802.11a
    5.15 - 5.25 GHz
    5.25 - 5.35 GHz
    5.47 - 5.725 GHz
    5.725 - 5.825 GHz
    6, 9, 12, 18, 24, 36,
    48, 54 Mbps
    802.11b 2.4 - 2.4835 GHz 1, 2, 5.5, 11 Mbps
    802.11g 2.4 - 2.4835 GHz
    6, 9, 12, 18, 24, 36,
    48, 54 Mbps
    802.11n 2.4 and 5 GHz
    21.7, 43.3, 65, 72.2
    Mbps
