Please Note: This product has been discontinued. For an alternative, please see the other Yealink Video Conferencing Products.

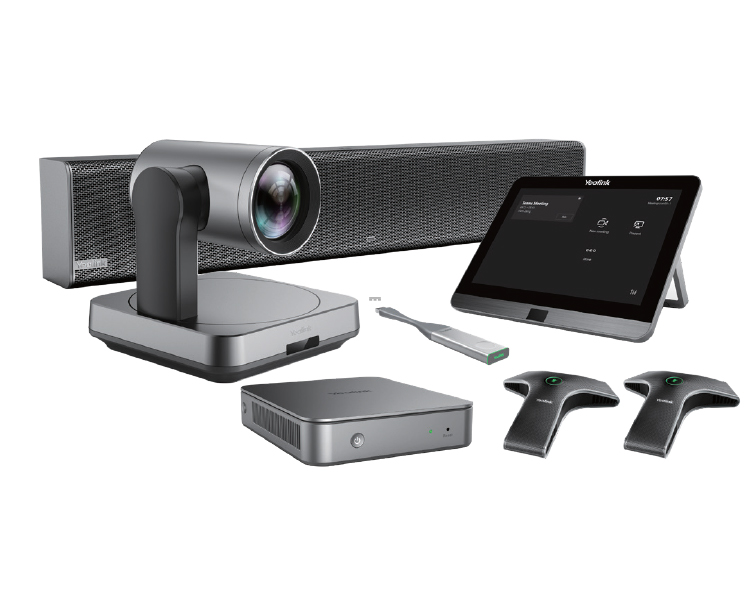

Yealink MVC840 Microsoft Teams Rooms System for Large Rooms

The Yealink MVC840 is a native and easy-to-use video conferencing solution specially designed for Microsoft Teams rooms. The MVC series provides a full-scene video conference solution to cover all of the meeting rooms from small to large.

Yealink MVC840 Key Features

  • One cable technology
  • 3-microphone array
  • Yealink camera control plug-in
  • Auto framing
  • Wireless content sharing
  • Device management

The MVC840 features the native Microsoft Teams-tailored user interface that is easy to be operated with close-to-zero learning curve, and you just walk into the meeting room and start your scheduled Teams or Skype for Business meeting with one-touch join. The Yealink MVC840 includes two or three VCM34 array microphones (up to 6 units can be connected) and a 4K UVC84 USB PTZ camera with 12x optical zoom to meet the requirements of large meeting room.

Yealink MV840 - Technical Specifications

Package content

  • MCore Mini-PC
  • MTouch II touch panel
  • UVC84 USB PTZ camera
  • Two or three VCM34 array microphones (optional)
  • One or two Yealink soundbars (optional)
  • WPP20 wireless presentation pod (optional)

Preload

  • Windows 10 IoT Enterprise X64
  • Windows 10 IoT Enterprise License
  • Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings
  • Yeallink RoomConnect

MCore Mini-PC

  • 8th-gen Intel® QUAD-CORE i5
  • Memory: 8GB (2 x 4GB)
  • Storage: 128GB SSD
  • 2 x HDMI video output with CEC supported
  • Bluetooth and WiFi
  • 1x Yealink VCH port (RJ45), connect to MTouch II
  • 4 x USB3.0 Type-A
  • 1 x 10/100/1000M Ethernet port
  • 1 x Power port
  • 1 x Security lock slot
  • Integrated cable management

MTouch II touch panel

  • 8-inch IPS screen
  • 1280 x 800 resolution
  • 10-point capacitive touch screen
  • 3.5mm headset jack
  • Human Motion Sensor
  • Angle adjustable bracket (28° ~ 50°)
  • 1080P/30FPS FHD for sharing
  • Support wired and wireless content sharing
  • Built-in WiFi AP for Yealink wireless presentation device
  • HDMI/USB-C HD video input

UVC84 USB PTZ Camera

  • 4K camera
  • 12x optical zoom
  • Field of view (diagonal): 80°
  • Auto Framing
  • Camera presets
  • Pan range: 200°
  • Tilt range: 130°
  • 1 x Line-out (3.5mm)
  • 1 x Yealink Microphone port (RJ-45)
  • 1 x USB 2.0 Type-B
  • 1 x Power port
  • 1 x Security lock slot
  • 1 x Reset slot

VCM34 Array Microphone

  • Built-in 3-microphone array
  • 360° 20ft (6-meter) voice pickup range
  • Cascade connection up to 6 units
  • Mute button with bicolor LED

Yealink Soundbar

  • Frequent response：100Hz - 20KHz
  • S/N：≥70dB
  • 1 x Line-in (3.5mm)

Package features s (2 x VCM34)

  • N.W/CTN: 10.4Kg
  • G.W/CTN: 11.6Kg
  • Carton Meas: 595mm x 535mm x 320mm

Package features (3x VCM34)

  • N.W/CTN: 12.9Kg
  • G.W/CTN: 14.1Kg
  • Carton Meas: 595mm x 535mm x 320mm

Package features (without audio)

  • N.W/CTN: 6.6Kg
  • G.W/CTN: 7.3Kg
  • Carton Meas: 595mm x 393mm x 258mm
