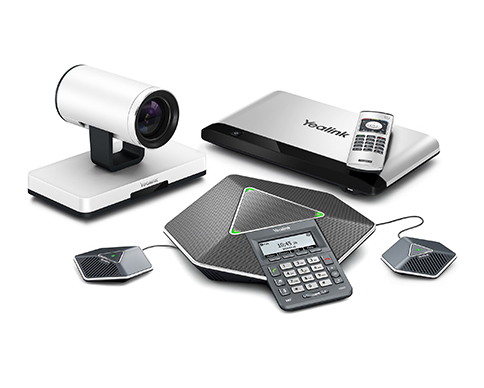

Package Includes

• Yealink VC120 codec
• Yealink VCS Phone
• Yealink Full-HD PTZ Camera
• Yealink Remote Control

Full-HD PTZ Camera

• Yealink VCC20
• 12x optical zoom PTZ camera
• Horizontal field of view: 70°
• 1920 x 1080 video resolution

Video Standard and Network Suitability

• H.264 High Profile, H.264, H.263
• Bandwidth dynamic adaptive adjustment
• Forward Error Correction (FEC), anti 8% video
  and 20% audio packet loss
• Shared content and audio preference strategy
• Bandwidth Auto adaptive/Protocol Auto
  adaptive/Audio/Video call Auto adaptive

Audio Input

• 1 x Yealink VCS Phone VCP41
• 1 x Yealink Array Microphone VCM30 (optional)
• VCS Phone with 2 CPE80 Expansion Microphones
• 1 x Line-in (3.5mm)

Audio Features

• Audio Codecs: G.722.1C, G.722.1, G.722, G.711 u/a
• Audio technology: AEC, VAD, CNG, PLC, AJB, AGC

Call Features

• 8-party 720P calls (asymmetric) with
  multipoint license
• Dual 1080P30: people+content sharing
• Layout: full-screen, equal, one big/one small
• Dual displays and ‘focus’ feature
• Audio/Video recording and playback
• Screenshots in USB flash drive
• Sleep mode, DND, call statistics
• Meeting password, Anti-attack
• Auto answer, mute, and call waiting
• Intelligent searching
• Local directory:
  500 entries + 100 meeting entries
• Call History: all/missed/received/dialed
• LDAP phonebook
• Multi-language support

Standard Communication Protocol

• H.323/SIP
• Dual stream protocol: H.239/BFCP (SIP)
• FECC: H.224/H.281
• H.323 protocol suite:
  H.225, H.241, H.245, H.235 v3
• Gatekeeper account and SIP account

Network and Security

• TCP/IP & RS232 with API support
• TCP/IP (IPv4/IPv6), DHCP/stastic IP
• HTTP/HTTPS web server
• SRTP/TLS, AES encryption
• QoS: 802.1p/Q, Diff-serv
• IEEE802.1X, LLDP-MED, VLAN
• Time and date synchronization using SNTP
• Built-in certificate

NAT and Firewall Transversal

•  NAT/STUN/ICE
• Yealink Intelligent Firewall Traversal
• OpenVPN
• H.460

Configuration Management

• Configuration via browser/display
• Firmware upgrading, factory resetting
• Export or import configuration
• SNMP, audio/video and network diagnosis
• Package tracing and system log exporting

User Interface

• • 1 x 10/100/1000M Ethernet
• 2 x HDMI, 1 x DVI, 1 x VGA
• 1 x Yealink Audio port (RJ-45)
• 1 x Line-in (3.5mm)
• 1 x Line-out (3.5mm)
• 1 x power port
• 2 x USB2.0 port
• 1 x power key
• 1 x security lock slot
• 1 x reset slot

Other Physical Features

• External universal AC adapter：
  AC 100~240V input and DC 19V/3.42A Output
• Power consumption (PSU): Idle＜2.8W,
  normal operating: 24W; MAX: 30W
• Dimension (W.D.H):
  Codec: 330mm x 183mm x 40mm;
  Phone: 320mm x 260mm x 52mm;
  Camera: 282mm x 152mm x 159mm;
  Remote control: 190mm x 55mm x 24mm
• Operating humidity: 10~95%
• Storage temperature: -10~50°C

Package Features

• N.W/CTN: 7.2kg
• G.W/CTN: 8.4kg
• Carton Meas: 418mm x 350mm x 420mm
