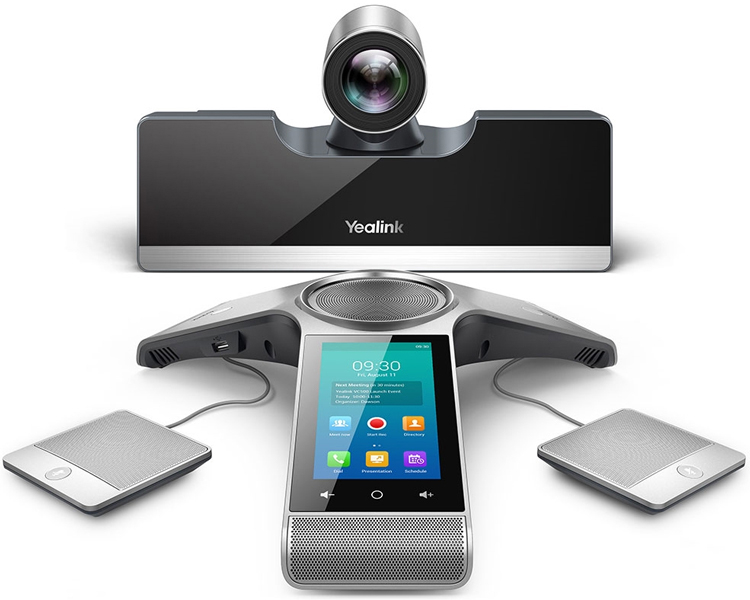

This addition to the Yealink VC series video conferencing endpoints features H.265/HEVC, Opus, and HD voice - backed by Harman speakers. By incorporating the Yealink Meeting Server (YMS), in addition to supporting Meeting Scheduling and One-touch Meeting Access, the VC500 allows for a more immersive audio-visual collaboration. All of these features combine to make the VC500 an ideal solution for small and medium meeting rooms.
Yealink VC500P - Technical Specifications
Camera Features
- Zoom: 5x optical
- Frame rate: 60 FPS
- Horizontal field of view: 83 degrees
Video Features
- Video call quality: Up to 1080p60fps
- H.265/HEVC
- Bandwidth requirement: 1080P from 512kbps in H.265
- Video packet loss recovery: 30%
- Local HD recording to USB flash drive
Audio device
- Microphone Model: CP960
- Voice pickup distance: 20ft / 6 meters
- 3-microphone array
- Expansion Microphones/Maximum devices in one system: 2 x CP wired expansion Mics CPE90
- Speaker: CP690 built-in speaker
- Noise proof technology
Touch Controller
- Touch Controller Model: CP960 video conference phone
- Display: 5 inch capacitive touchscreen (170 x 1280)
- Maximum devices connections simultaneously: 1
Collaboration Features
- Whiteboard
- Annotation on content sharing
- Multi-screen interaction
- Reverse control
Network and Security Features
- TCP/IP: IPv4 and IPv6
- Communication protocols: H.323 / SIP
- Traversal features: ICE/TURN/STUN/NAT/H.4
- Encryption: SRTP/TLS/H.235/AES 128-bit
Physical Connections
- Video output 2 x HDMI
- Video input for content: 1 x HDMI & 1 x Mini Display Port
- VCH/Phone port: 1 x RJ45
- USB interface: 2 x USB2.0 in VC500 codec, 1 x USB2.0 in VCH50 cable hub
- Network interface: 1 x 10/100/1000M Ethernet
- Power adapter: 48V/0.7A
Video Codec
H.265, H.264 High Profile, H.264, H.263, H.263+
Audio Codec
ARES, Opus (8-48kHz), G.722.1C, G.722.1, G.722, G.711 (PCMU/PCMA), G.729
Video Resolution
1080P, 720P, 540P, 360P, 4CIF, CIF
