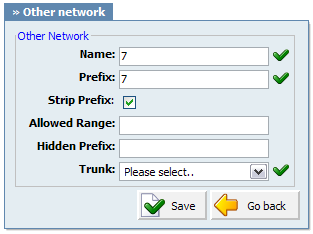

Name:

Custom Other Network name/identifier

Example: London FO/7

Field Type: [a-z][0-9]

Prefix:

Number used to access Other Network(Up to 3 digits allowed)

Example: If this field is set to '7', dial '*188 7 {NETWORK NUMBER}'

Field Type: [0-9]

Strip Prefix:

Should the 'Prefix' number be stripped once dialing Other network

Example: If 'Prefix' field is set to '7' and this field is enabled, once user dials *188 7 55510205 system will dial 55510205. If this field is disabled, 755510205 will be dialed.

Field Type: Option buttons

Allowed Range:

Number range allowed to be dialled after the Other Network Access Code

Example: If this field is set to '2', only extensions on Other Network starting with number 2 will be allowed to dial. If  you dial *188 7 1002, our call will fail. But, if we dial *188 7 2000, our call will be transferred to extension 2000.

Field Type: [a-z][0-9]

Hidden Prefix:

Prefix number added before dialed number

Example: If this field is set to 212 and we dialed *188 7  55510205, 21255510205 will be dialed. This is useful is provider requires a certain code before dialing the destination, area code inserted automatically etc...

Field Type: [a-z][0-9]

Trunk:

Select trunk that will be used once 'Number' is dialed

Example: London FO Trunk

Field Type: Select box
