Add/Edit DID

Previous Top Next

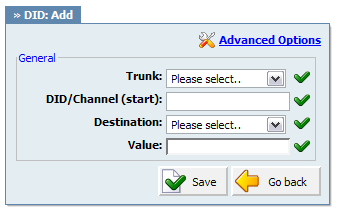

A click on 'Add/Edit' will open standard DID options



Snap0021







Trunk:



Select the trunk DID will pickup the calls from



Example: If you select '2554433' for example,  DID will wait for any incoming calls over that trunk and then will pass the call further based on the settings below

Field Type: Select box







DID/Channel (start):



Provide a DID number here ( e.g. 55510205)



Example: If selected 'Trunk' is PSTN or VOIP, set the line number here

Field Type: [0-9]







Destination:



PBXware destination DID will transfer all calls to (Extensions, IVRs, Queues, Voicemails, Remote Access, Conferences and even to Fax to Email service)



Example:

Field Type: Select box







Value:



Destination extension all DID calls will be transferred to.



Example: If 'Destination'='Extension', set the extension number here(e.g. 1002). In case 'Destination'='IVR', set the IVR extension number here

Field Type: [0-9]



NOTE:

If using 'Fax to email', set this field to email address ([email protected]) or extension number (1002). If extension number is used fax will go to email address associated to extension.

In order to send fax remotely set this field to 'remote:fax'
